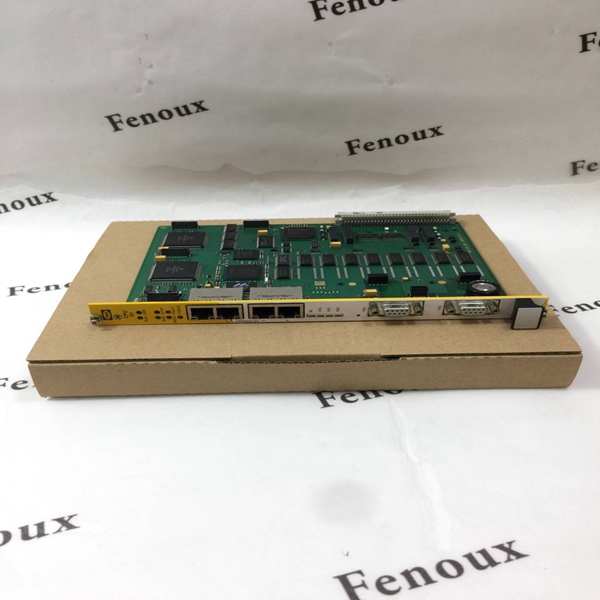

HIMA HIMAX CPU01

This manual describes the technical characteristics of the module and its use. It provides

information on how to install, start up and configure the module.

The content of this manual is part of the hardware description of the HIMatrix programmable

electronic system.

This manual is organized in the following main chapters:

 Introduction

 Safety

 Product Description

 Start-up

 Operation

 Maintenance

 Decommissioning

 Transport

 Disposal

The HIMatrix F60 is available for the programming tools SILworX and ELOP II Factory. Which

programming tool can be used, depends on the processor operating system of the HIMatrix

F60, refer to the following table:

To ensure improved readability and comprehensibility, the following fonts are used in this

document:

Bold To highlight important parts.

Names of buttons, menu functions and tabs that can be clicked and used

in the programming tool.

Italics For parameters and system variables

Courier Literal user inputs

RUN Operating state are designated by capitals

Chapter 1.2.3 Cross references are hyperlinks even though they are not particularly

marked. When the cursor hovers over a hyperlink, it changes its shape.

Click the hyperlink to jump to the corresponding position.

Safety notes and operating tips are particularly marked.

1.3.1 Safety Notes

The safety notes are represented as described below.

These notes must absolutely be observed to reduce the risk to a minimum. The content is

structured as follows:

 Signal word: warning, caution, notice

 Type and source of risk

 Consequences arising from non-observance

 Risk prevention
