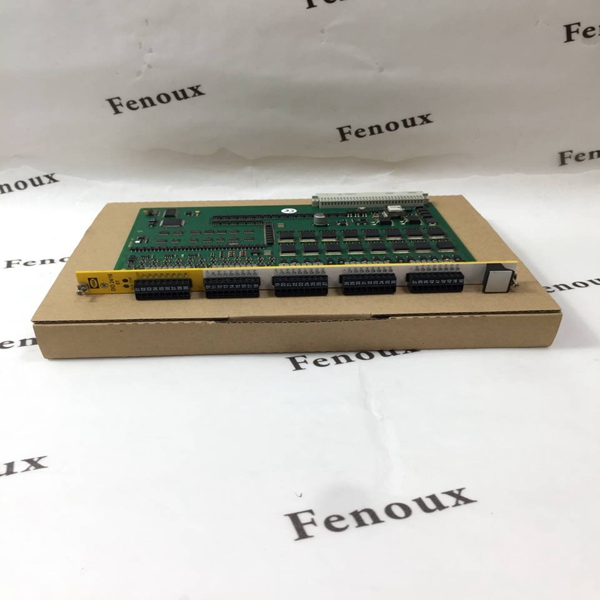

HIMATrix DIO 24/16 01 HIMA

The type plate contains the following details:

 Product name

 Bar code (1D or 2D code)

 Part no.

 Production year

 Hardware revision index (HW Rev.)

 Firmware revision index (FW Rev.)

 Operating voltage

 Mark of conformity

Safety-Related Outputs

Each group of eight outputs is provided with a connector on the clamps for the common ground.

If an output channel is overloaded, it is switched off for 10 s until the overload is no longer

present. If the module output range has a total load of more than 8 A, the outputs are all

switched off for 10 s and a new test is performed.

3.1.2.1 Reaction in the Event of a Fault

If the module detects a faulty signal on a digital output, the affected module output is set to the

safe (de-energized) state using the safety switches.

If a module fault occurs, all digital outputs are switched off.

In both cases, the module activates the ERR LED.

The error code allows the user to configure additional fault reactions in the user program.

3.1.3 Line Control

The digital outputs DO 1 through DO 8 of the DIO 24/16 01 module can be used to detect the

own digital inputs or the digital inputs of other modules (e.g., DI 32 01) for short-circuits and

open-circuits, e.g., for an EMERGENCY STOP button complying with Cat. 4 and PL e in

accordance with EN ISO 13849-1. To this end, the outputs are pulsed and connected to the

safety-related digital inputs. In this case, the outputs assume the function of pulsed outputs.
