Brand：HIMA
Model number：F7130A
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.4kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

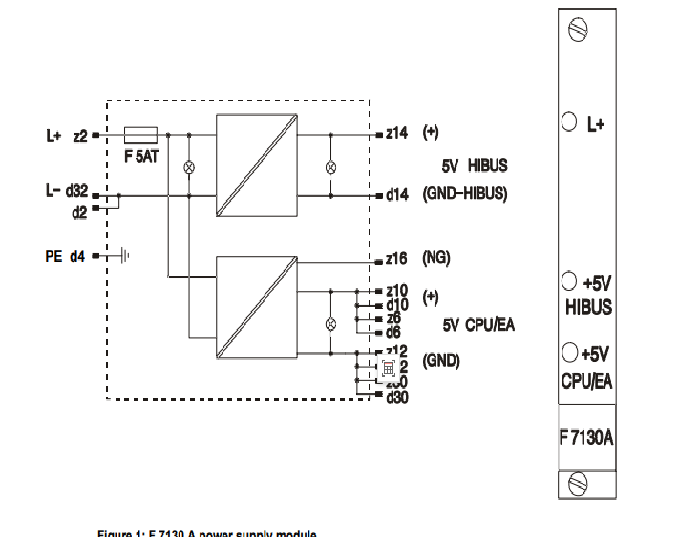

The module supplies PES H41q with 5 VDC from a main supply of 24 VDC. It is a DC/DC converter with electrical isolation between input and output voltage. The module is equipped withovervoltage protection and current limitation. The outputs are short-circuit proof. The supplyconnections are separated for the central device/l0 modules and HIBUS interface.

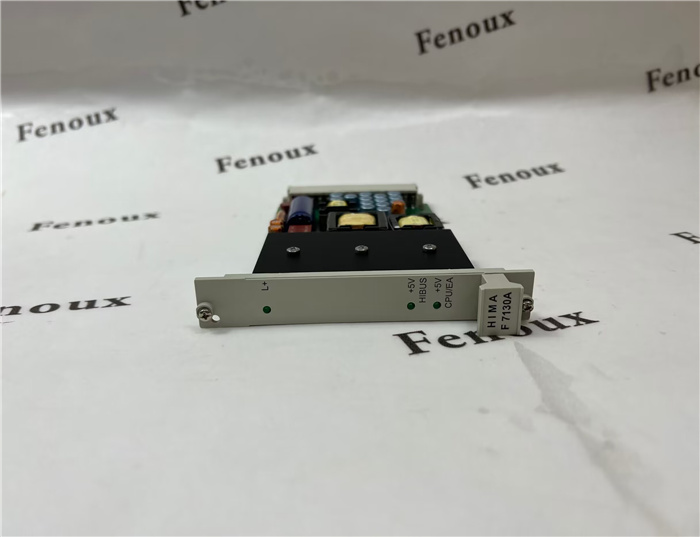

The present input voltage (L+) and the output voltages are indicated with LEDs on the frontplate. A proper operation of the module is still assured if the LED 5 V CPU/EA illuminates onlyslightly.
The power supply for the monitoring of the central device is fed separately via pin 216 (NG)
Operating data
Primary fuse
Outputs for
central device/l0-modules
HIBUS
Efficiency rate
Space requirement
24 VDC, -15..+20 %, 'pp < 15 %
5 AgL
5 VDC,+0.25 V1 10 A5 VDC,土0.25 V11 A
2 70 %
4 SU
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Relevant details：
F4101 (17.003)
F4102
F4110 (17.058)
F4111a (17.021)
F4304 (17.026)
F7126
F7131
F7553 (17.037)
F8601 (17.036)
F8620/4
F8650 (17.053)
F8650E
