F7553 HIMA
F7553 HIMA COUPLING MODULE
Brand： HIMA
Model number：F7553
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：1.105kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
F7553 HIMA COUPLING MODULE

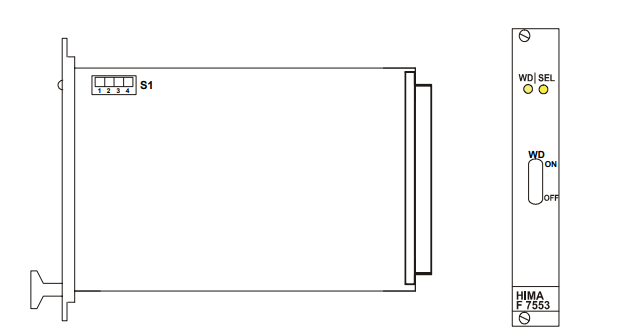

LED WD on the front plate shows the existing fail-safe watchdog signal.
By the second LED SEL the access to the IO modules of the appertaining
IO subrack is signalled. Via the shrouded switch WD the WD signal can
be switched off to change the coupling module F 7553 without releasing a
system emergency-off.
The coding switches S1.1 ... S1.4 serves the setting of the numbers for the
IO bus (cabinet) and sub rack:
The coupling module consists of the monitoring of the 5 V supply of the IO
subrack and transmits a corresponding status signal to the central module.
The module is automatically tested during operation.
Space requirement 4 TE
Operating data 5 V DC: 600 mA
24 V DC: 750 mA
S1 1234
WD
ON
IO rack IO rack
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
Switch S1. Switch S1.
1 2 3 4 1 2 3 4
switch upwards
I
