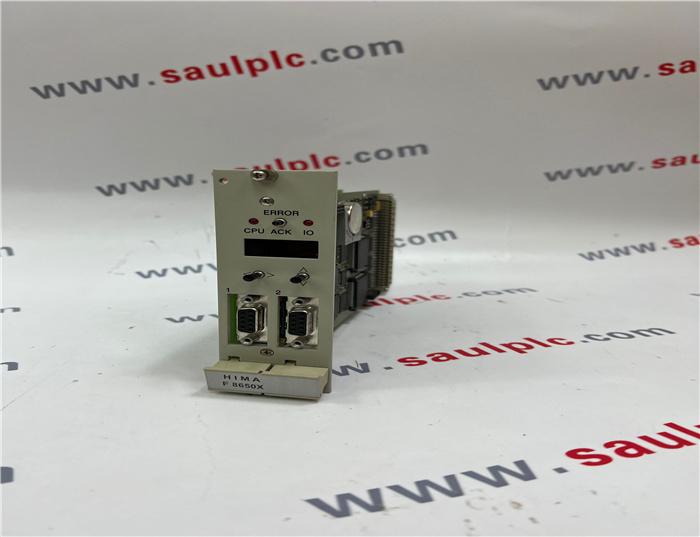

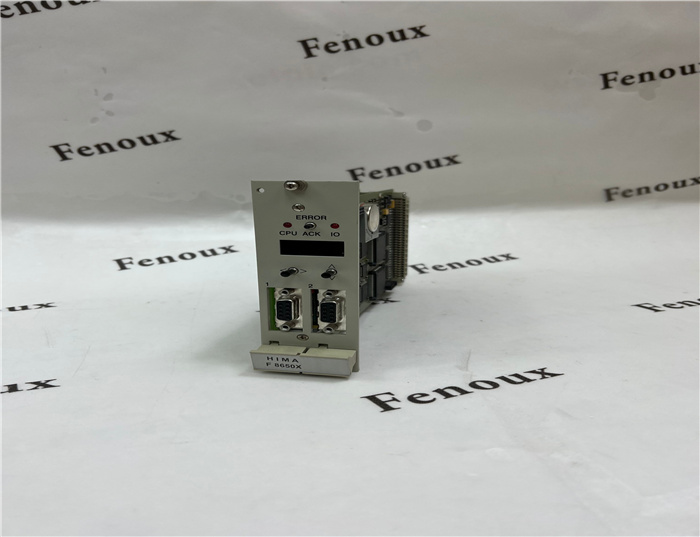

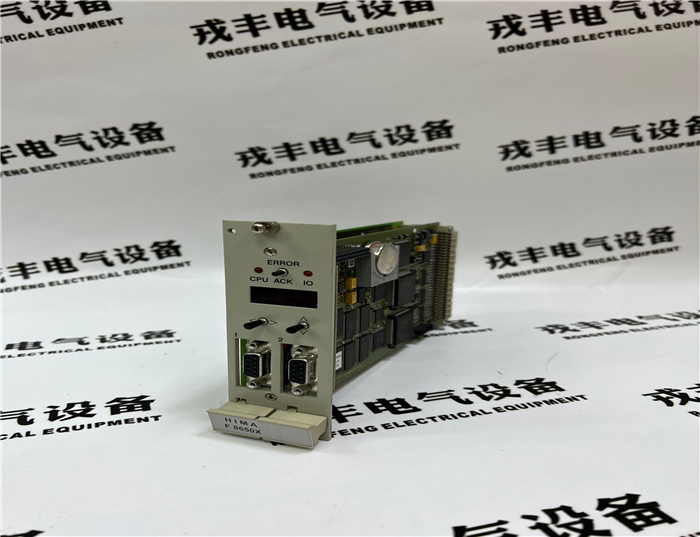

F8650X HIMA Central module

INQUIRE NOW

Products Name: F8650X HIMA Central module

PRODUCT DESCRIPTION

Brand：HIMA

Model number：F8650X

Colour：new

Warranty: 12 months

Lead Time：3-day working day

Country of origin: USA Price: Please contact us

Product weight：0.2kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

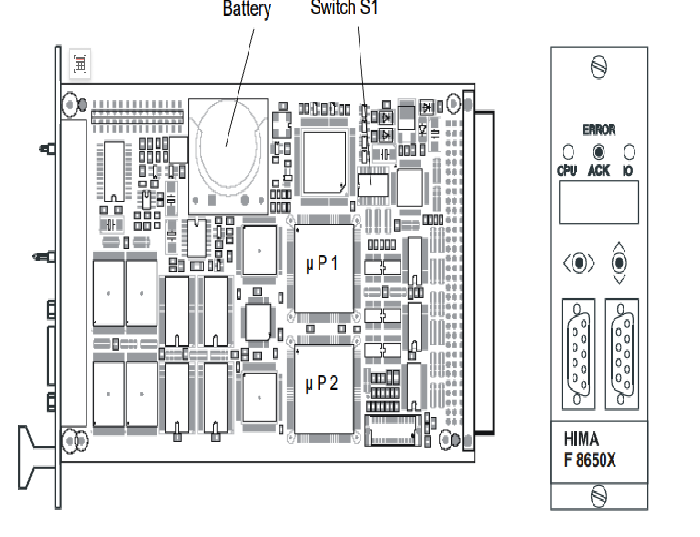

For the serial interface only the bus station no. 1-31 can be set. Within an Ethernet network the bus station no. can be set from 1 to 99. Therefore the switches S1-6/7 must be set in addition to the switches S1-1/2/3/4/5. The number of the communication partners within a network is still limited to 64. This enhanced setting of the bus station no. is only possible from operating system BS41q/51q V7.0-8 (05.31) of the central module.

Applications with the communication module F 8627X:

– connection of the central module to a PADT (ELOP II TCP) – connection to other communication partners within an Ethernet network (safeethernet, Modbus TCP) The communication runs from the central module via the backplane bus to the communication module F 8627X and from the Ethernet ports of the F 8627X into the Ethernet network and vice versa.

Special features of the central module:

– Self-education: from operating system BS41q/51q V7.0-8 (05.31) – ELOP II TCP: from operating system BS41q/51q V7.0-8 (05.31) Further informations about the bus station no., ELOP II TCP, loading of operating systems and application programs (self-education) et al. corresponding to the central module you will find in the data sheet of the F8627X as well as the operating system manual of H41q/H51q and the safety manual of H41q/H51q.

Pin RS 485 Signal Meaning

1 - - not used 2 - RP 5 V, decoupled by diodes 3 A/A’ RxD/TxD-A Receive/Transmit Data A 4 - CNTR-A Control signal A 5 C/C’ DGND Data Ground 6 - VP 5 V, positive pole of power supply 7 - - not used 8 B/B’ RxD/TxD-B Receive/Transmit Data B 9 - CNTR-B Control signal B Before removing a central module its fixing screws must be completely loosened and freely movable. Remove the module from the bus board by pushing the ejection lever (front label) top down and quickly removing in an upward motion to ensure that faulty signals are not triggered within the system! To attach the module, place it on the terminal block and press it inwards as far as it will go. This action should be performed quickly to e
