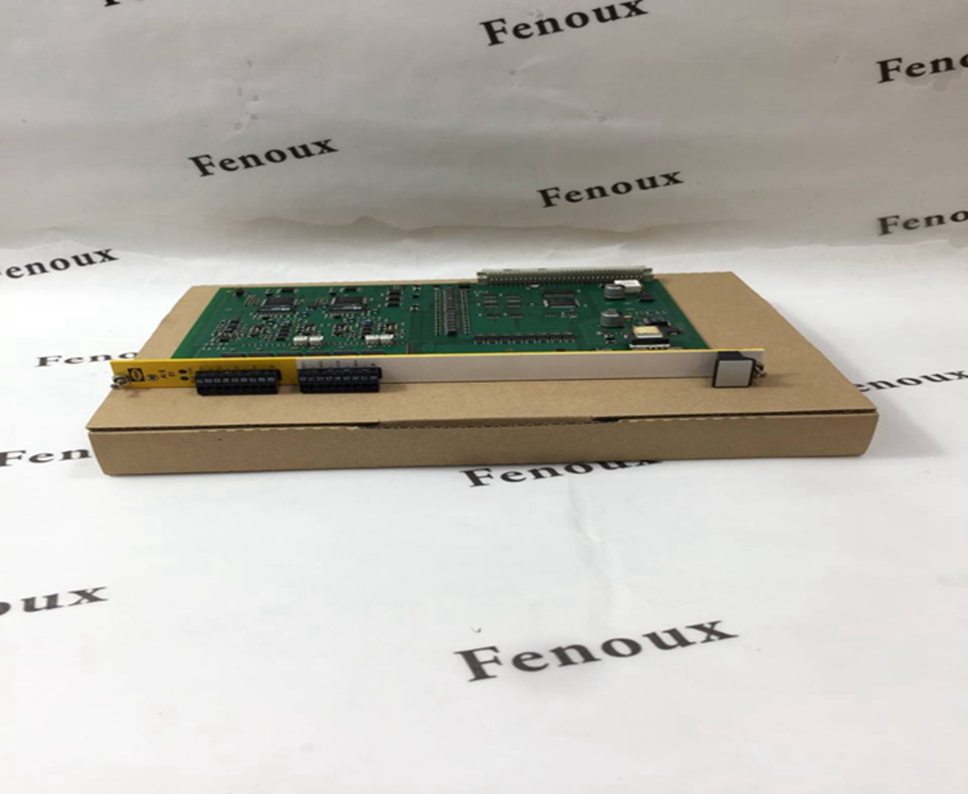

HIMA BV7032

Microprocessors INTEL 386EX, 32 bits

Clock frequency 25 MHz

Memory per microprocessor

 Operating System Flash-EPROM 1 MB

 User program Flash-EPROM 1 MB *

 Data SRAM 1 MB *

* Degree of utilization depending on operating system version

Interfaces Two serial interfaces RS 485 with electric isolation

Diagnostic display Four digit matrix display with selectable information

Shutdown on fault Safety-related watchdog with output 24 V,

loadable up to 500 mA, short-circuit proof

Construction Two European standard PCBs,

one PCB for the diagnostic display

Space requirement 8 SU

Operating data 5 V / 2 A

For the serial interface only the bus station no. 1-31 can be set.

Within an Ethernet network the bus station no. can be set from 1 to 99. Therefore the switches

S1-6/7 must be set in addition to the switches S1-1/2/3/4/5.

The number of the communication partners within a network is still limited to 64.

This enhanced setting of the bus station no. is only possible from operating system BS41q/51q

V7.0-8 (05.31) of the central module.

Applications with the communication module F 8627X:

– connection of the central module to a PADT (ELOP II TCP)

– connection to other communication partners within an Ethernet network (safeethernet,

Modbus TCP)

The communication runs from the central module via the backplane bus to the communication

module F 8627X and from the Ethernet ports of the F 8627X into the Ethernet network and vice

versa.

Special features of the central module:

– Self-education: from operating system BS41q/51q V7.0-8 (05.31)

– ELOP II TCP: from operating system BS41q/51q V7.0-8 (05.31)

Further informations about the bus station no., ELOP II TCP, loading of operating systems and

application programs (self-education) et al. corresponding to the central module you will find in

the data sheet of the F8627X as well as the operating system manual of H41q/H51q and the

safety manual of H41q/H51q.
