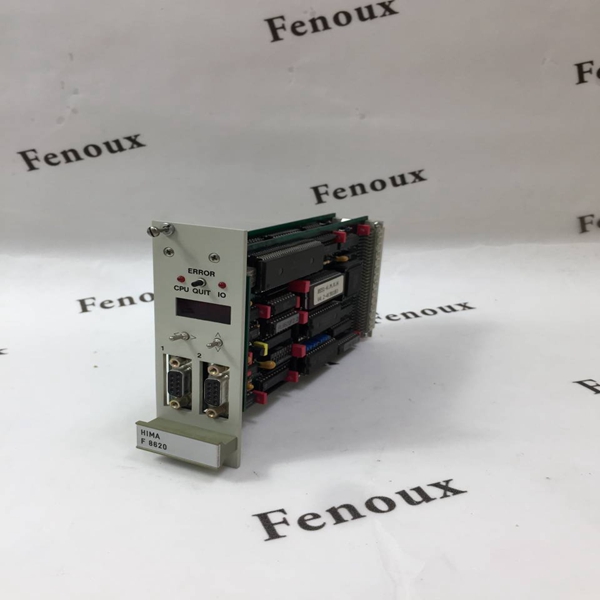

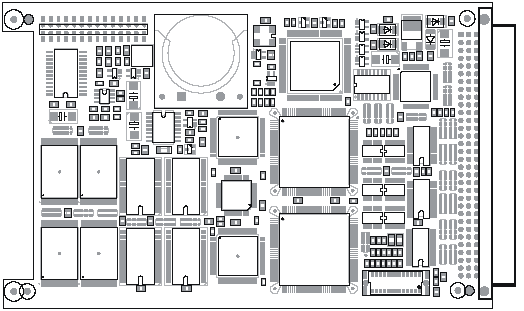

HIMA F8620

Before removing a central module its fixing screws must be completely

loosened and freely movable. Remove the module from the bus board

by pushing the ejection lever (front label) top down and quickly removing

 in an upward motion to ensure that faulty signals are not triggered

within the system!

To attach the module, place it on the terminal block and press it

inwards as far as it will go. This action should be performed quickly to

ensure that faulty signals are not triggered within the system!

For the serial interface only the bus station no. 1-31 can be set.

Within an Ethernet network the bus station no. can be set from 1 to 99. Therefore the switches

S1-6/7 must be set in addition to the switches S1-1/2/3/4/5.

The number of the communication partners within a network is still limited to 64.

This enhanced setting of the bus station no. is only possible from operating system BS41q/51q

V7.0-8 (05.31) of the central module.

Applications with the communication module F 8627X:

– connection of the central module to a PADT (ELOP II TCP)

– connection to other communication partners within an Ethernet network (safeethernet,

Modbus TCP)

The communication runs from the central module via the backplane bus to the communication

module F 8627X and from the Ethernet ports of the F 8627X into the Ethernet network and vice

versa.

Special features of the central module:

– Self-education: from operating system BS41q/51q V7.0-8 (05.31)

– ELOP II TCP: from operating system BS41q/51q V7.0-8 (05.31)

Further informations about the bus station no., ELOP II TCP, loading of operating systems and

application programs (self-education) et al. corresponding to the central module you will find in

the data sheet of the F8627X as well as the operating system manual of H41q/H51q and the

safety manual of H41q/H51q.
