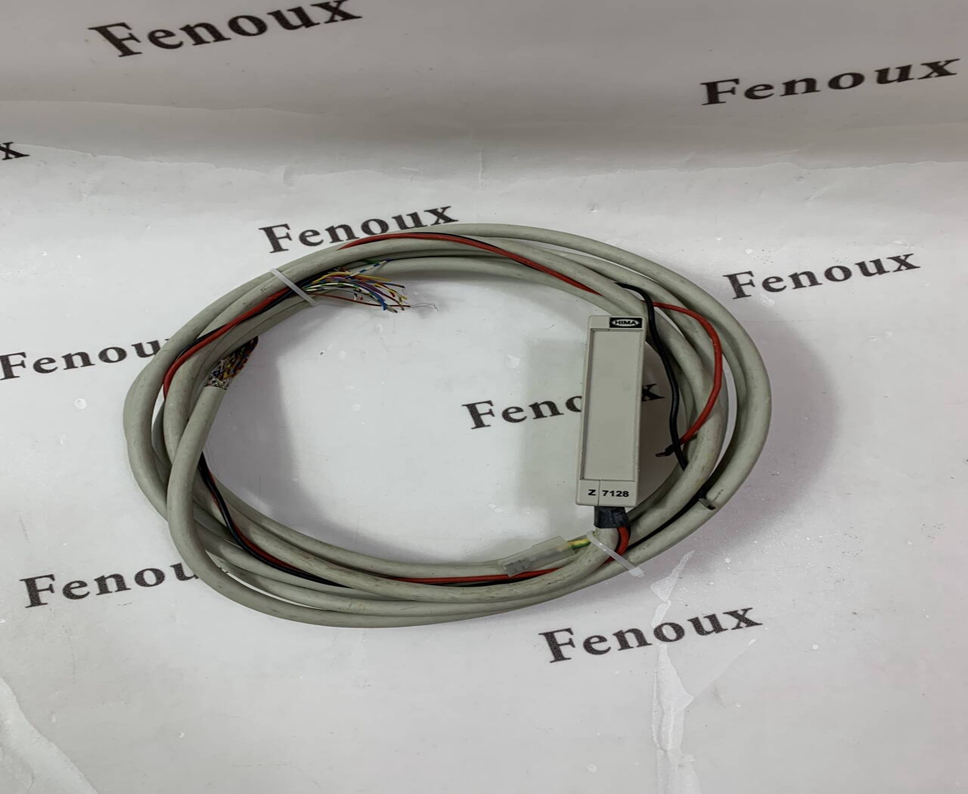

HIMA Z7128

The module supplies PES H41q with 5 VDC from a main supply of 24 VDC. It is a DC/DC con.verter with electrical isolation between input and output voltage. The module is equipped withovervoltage protection and current limitation. The outputs are short-circuit proof. The supplconnections are separated for the central device/l0 modules and HBUS interface.

The present input voltage (L+) and the output voltages are indicated with LEDs on the frontplate. A proper operation of the module is still assured if the LED 5 V CPU/EA illuminates onlyslig htly .

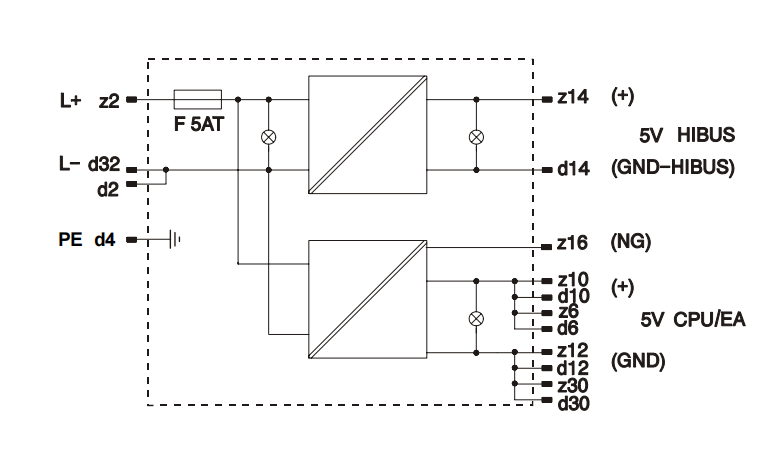

Figure 1: F 7130 A power supply module

The module supplies PES H41g with 5 VDC from a main supply of 24 VDC. It is a DC/DC con.verter with electrical isolation between input and output voltage. The module is equipped withovervoltage protection and current limitation. The outputs are short-circuit proof. The supplyconnections are separated for the central device/l0 modules and HIBUS interface.

The present input voltage (L+) and the output voltages are indicated with LEDs on the frontplate. A proper operation of the module is still assured if the LED 5 V CPU/EA illuminates onlyslightly.

The power supply for the monitoring of the central device is fed separately via pin z16 (NG)

Operating data

Primary fuse

utputs for

central device/lO-modules

HIBUS

Efficiency rate

Space requirement

24 VDC, -15...+20 %, rpp < 15 %

5 A gL

5VDC,士0.25 V1 10 A

5VDC,土0.25 V1 1A

2 70 %

4 SU
