Microprocessors INTEL 386EX, 32 bits
Clock frequency 25 MHz
Memory per microprocessor
Operating System Flash-EPROM 1 MB
User program Flash-EPROM 1 MB *
Data SRAM 1 MB *
* Degree of utilization depending on operating system version
Interfaces Two serial interfaces RS 485 with electric isolation
Diagnostic display Four digit matrix display with selectable information
Shutdown on fault Safety-related watchdog with output 24 V,
loadable up to 500 mA, short-circuit proof
Construction Two European standard PCBs,
one PCB for the diagnostic display
Space requirement 8 SU
Operating data 5 V / 2 A
For the serial interface only the bus station no. 1-31 can be set.

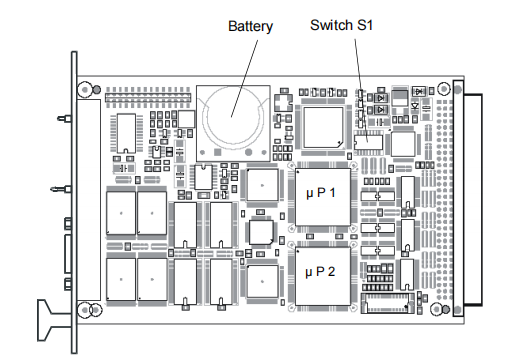

Within an Ethernet network the bus station no. can be set from 1 to 99. Therefore the switches
S1-6/7 must be set in addition to the switches S1-1/2/3/4/5.
The number of the communication partners within a network is still limited to 64.
This enhanced setting of the bus station no. is only possible from operating system BS41q/51q
V7.0-8 (05.31) of the central module.
Applications with the communication module F 8627X:
– connection of the central module to a PADT (ELOP II TCP)
– connection to other communication partners within an Ethernet network (safeethernet,
Modbus TCP)
The communication runs from the central module via the backplane bus to the communication
module F 8627X and from the Ethernet ports of the F 8627X into the Ethernet network and vice
versa.
Special features of the central module:
– Self-education: from operating system BS41q/51q V7.0-8 (05.31)
– ELOP II TCP: from operating system BS41q/51q V7.0-8 (05.31)
Further informations about the bus station no., ELOP II TCP, loading of operating systems and
application programs (self-education) et al. corresponding to the central module you will find in
the data sheet of the F8627X as well as the operating system manual of H41q/H51q and the
safety manual of H41q/H51q.
