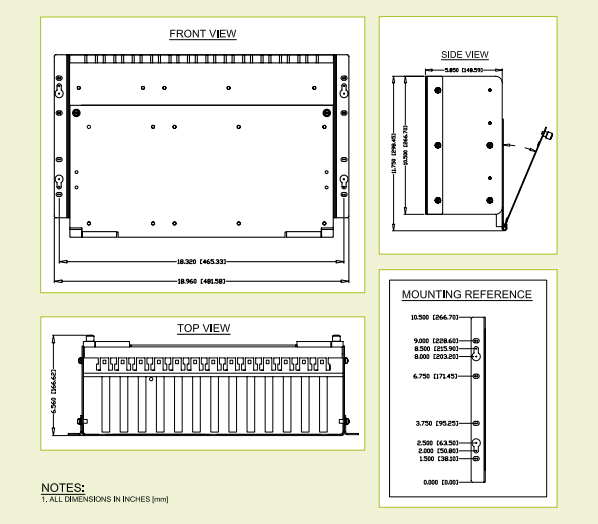

The Honeywell IPC-620 adapter chassis is provided with the
front cover. The cover is hinged so it opens easily to allow
access to the adapter cards and field wiring connectors.
The cover can also be easily removed. Angle brackets for
mounting the chassis in the control cabinet are also provided.
Description:
Emphatec’s MIBRIDGE® offering
includes an interface system to replace
Honeywell’s IPC-620 I/O racks. The
MIBRIDGE® solution includes a chassis
that replaces the IPC-620 chassis
(same footprint in the control cabinet),
adapter cards for 6/8, 16 and 32
channel I/O cards, and cables.
Field wiring connectors are removed
from the existing IPC-620 I/O cards and
re-installed on the MIBRIDGE® adapter
cards. The adapter card accepts the
field wiring connectors directly meaning
there is no need to modify the field
wiring. This saves time and more
importantly eliminates the chance of
wiring errors. A cable interfaces each
adapter card to the new control system.
Adapter cards are specific to the
number of I/O channels on the original
IPC-620 I/O card, not the type of I/O.
For example, all 16 channel IPC-620
I/O cards, regardless of whether they
are input or output cards, are replaced
by a common 16 channel adapter card.
The cable to the new control system
can be generic (provided with flying
leads for connection to the new I/O
card) or specific to the new I/O card
(provided with a connector specific to
that I/O card).
The MIBRIDGE® Honeywell IPC-620
solution was designed to allow control
to migrate to Rockwell’s Controllogix
system although it can be used
with other platforms as well. The
Controllogix chassis can be mounted
directly on the front of the MIBRIDGE®
chassis (see photo).
