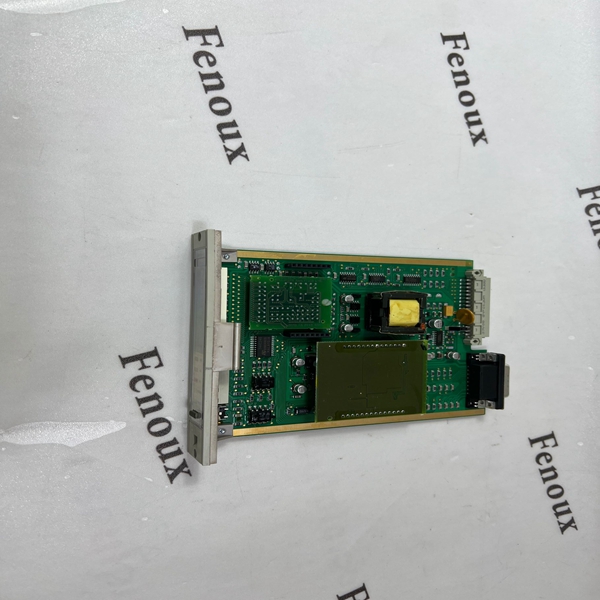

If IOM type is Then the ancillary hardware
DO
Digital Output
takes the output signal and drives a set of relays
AI LLMUX can be one to four Field Termination Assemblies.
Table 4.2 IOM types and ancillary hardware
These FTA's pre-condition and package the signals before they are received by the IOTA.
To simplify system hardware selection and to minimize spare parts requirements, IOMs can be
used with various types of IOTAs. The following table provides a list of IOMs, their associated IOTAs,
and ancillary hardware. All IOM models listed within the same cell can be installed on any of the
IOTAs listed in the adjacent cell.
- 75 -
ATTENTION
Connecting Series C IOM's into a Galvanically Isolated / Intrinsically Safe (GI/IS)
environment requires specific GI/IS IOTAs.
Refer to the following for GI/IS IOTAs and the IOMs they support: GI/IS IOTA models
IOM block
type
IOM model
number
IOTA
model
number
IOTA description 7 IOTA supported
FTAs or ancillary
cards
AI-HART Cx-PAIH01
Refer to Attention
Cx-TAIX01 AI, non-redundant None
Cx-TAIX11 AI, redundant None
Cx-GAIX11 AI, GI-IS, redundant MTL4541
MTL4575
Cx-GAIX21 AI, GI-IS, non-redundant MTL4544
Cx-PAIH51 Cx-TAIX51 AI, non-redundant None
Cx-TAIX61 AI, redundant None
AI-HART
Differential/
Singleended
CC-PAIH02 Cx-TAIX01 Analog Input, Non-redundant, 4
ch. differential
None
Cx-TAIX11 Analog Input, Redundant, 4 ch.
differential
None
Cx-GAIX11 Analog Input, GI-IS, Redundant,
no differential, 4-20 mA only
MTL4544
Cx-GAIX21 Analog Input, GI-IS, Nonredundant, no differential, 4-20
mA only
MTL4541
MTL4575
CCTAID11
Analog Input, Redundant, 16 ch.
differential
None
CCTAID01
Analog Input, Non-redundant, 16
ch. differential
None
AI-HL Cx-PAIN01 Cx-TAIN01 AI, Non-redundant None
Cx-TAIN11 AI, Redundant None
AI-HL Cx-PAIX01
Refer to Attention
Cx-TAIX01 AI, Non-redundant None
Cx-TAIX11 AI, Redundant None
Cx-GAIX11 AI, GI-IS redundant MTL-4541
MTL-4575
Cx-GAIX21 AI, GI-IS non-redundant MTL-4544
AI-HL
Differential/
Singleended
CC-PAIX02 CC-TAIX01 AI, non-redundant None
CC-TAIX11 AI, redundant None
Cx-GAIX11 AI, GI-IS, redundant MTL4541
MTL4575
Cx-GAIX21 AI, GI-IS, non-redundant MTL4544
CCTAID01
AI, non-redundant None
CCTAID11
AI, redundant None
AI CC-PAIN01 CC- Analog Input, Non-redundant, no None
