Brand： Honeywell

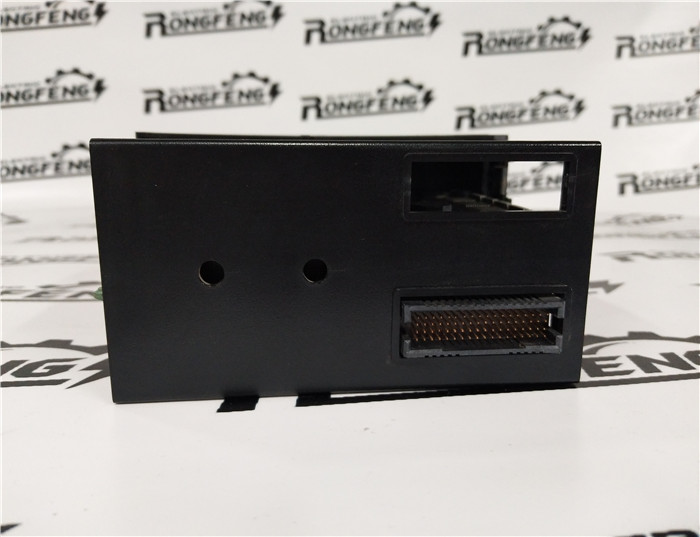

Model number：30750783-003
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.14kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
Two-wire transmitter wiring - Analog Input module
The AI IOM/IOTA is optimized for use with classic two-wire transmitters. All 16 channels can accept
inputs from two-wire transmitters without any special wiring or jumper options.
The standard usage is to:
l reserve the first 12 channels of the AI IOM/IOTA for classic two-wire transmitters, and
l use the last 4 channels of the IOM/IOTA to interface any of the supported input styles
(including two-wire transmitters).
Depending on the input style applied to channels 13 through 16, you may need to cut jumpers on
the IOTA and apply wiring to the TB2 terminal block on the IOTA. This is discussed in detail in the
following sections.
Non two-wire transmitter wiring - Analog Input module
The IOTA is pre-engineered (without custom wiring) to accept sources that are not two-wire
transmitters, but you must use channels 13 through 16.
When sources other than two-wire transmitters are to be interfaced and you have more than 4 per
IOTAs, then:
l the first four must be interfaced to channels 13 through 16, and
l the remainder may be able to interface to channels 1 through 12 (depending on input style)
but you must perform some degree of custom wiring.
NOTE
There are some input styles that simply cannot be applied to channels 1 through 12 - if that
applies to you then you will likely need to purchase an additional IOM/IOTA.
CAUTION
The jumpers on the IOTA are non-repairable; once cut, they stay cut. Careful planning is a
must.
Custom wiring - Analog Input module
Custom wiring means:
l using additional wires to TB2 (beyond their intended purpose for channels 13 through 16)
l and/or using wires to another termination area in the cabinet engineered on a project-basis.
• Wall or turnstile mounting with enhanced ergonomic vision.
• Stylish and robust design that blends in with elegant premises, as well as manufacturing
environments.
• Access Control and Time and Attendance transits support that allows advanced transits for
both configurations.
• Flexible support of a variety of reading technologies, from proxy to smartcard.
• Innovative system with Honeywell Forge Occupant Experience Mobile Access.
• Embedded I/O removes the need to invest in additional, costly devices.
SPECIFICATIONS
• Modern Design LonWorks Compact reading unit for for multi-reading technology.
• Includes reader (prox, smartcard, BLE) with an 16x2 LCD, a numeric keypad with 16 keys, two
supervised or digital inputs, two powered open collector drain outputs for gate management.
- To be connected to Temaline TS2 controller.
- Refer to compatibility matrix for EBI-Temaline versions that connect to this device.
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
