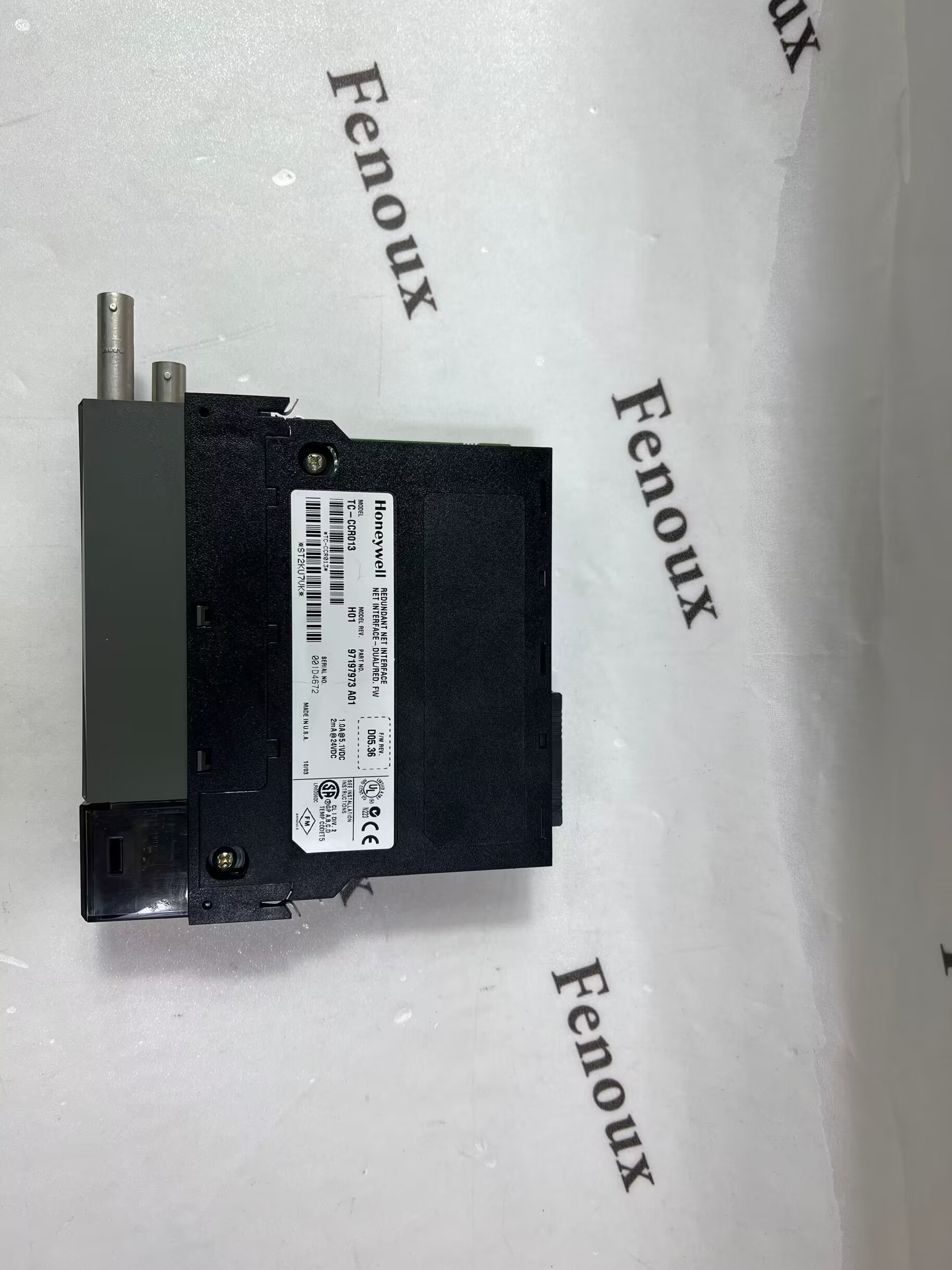

51197040-400 Honeywell Programmable controller Brand new

In virtually all configurations, the C300 controller and Series C I/O provides useful, maintainable process equipment  connections in a smaller footprint than existing competitors and Honeywell equivalent products. Installing Series C I/O modules contributes to overall total installed cost savings.

INQUIRE NOW

Products Name: 51197040-400 Honeywell Programmable controller Brand new

PRODUCT DESCRIPTION

Brand:   Honeywell

Model number:51197040-400

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.5kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service Professional Sales provides 24 hours /7 days online service

51197040-400   Honeywell   Programmable controller Brand new

Description:

The Digital Input module requires the installation of a bleed resistor (approx. 22k ohm) at the

switching device between the 24VDC source and the terminal providing the switched signal. If this

resistor is not installed and open wire detection is enabled (OWDENBL = ON) a false open wire

alarm will be generated whenever the input device is not closed (i.e., PVRAW = OFF).

If open wire detection is enabled (OWDENBL = ON) and the IOM detects the broken-wire condition,

then

l PVCALC will be NaN, in which case, PVAUTO will be NaN.

l Soft Failure 179 'Open Wire Detected' is generated, and

l PVRAW and PVAUTO will consequently be set to OFF.

Note that Open Wire Detection is supported only with the 24VDC IOTAs and not for the following:

l The high voltage DI modules

l The DI-SOE module

l The GI-IS IOTAs

If a GI-IS IOTA (CC-GDILxx) is used, open wire detection as described above may not be used.

l In these cases, OWDENBL must be set to OFF for all channels.

l As an alternative to Series C open wire detection, you may use the Line Fault Detection (LFD)

feature of the MTL Switch/Proximity Detector Interfaces.

MTL Switch/Proximity Detector Interface is the third party equipment from MTL which enables

safe-area loads to be controlled by switch or proximity detectors located in a hazardous area.

Two replay output are provided. Independent phase reversal control allows an alarm condition

to be signaled for either state of the sensor. A selectable line fault detects (LFD) facility detects

an open or short circuit in either field circuit. It is not part of any agency certification or CE

certification.

o If LFD is enabled (through a switch on the device) for any channel, two resistors must

be installed: a 22k ohm resistor across the switch and a 680-ohm resistor in series

with the power supply lead. This feature detects both open and short circuits. When

LFD is enabled and a line fault is detected the MTL device illuminates an LED

indicator and forces the channel data to OFF.

o If a MTL4510, MTL4511, or MTL4516 device is used, there is no indication to Experion

PKS.

o If the MTL4517 is used channel 31 is energized to ON. Note that for the MTL4517 if

any channel has LFD enabled channel 31 is not available for use as a general

purpose input - for the other three devices channel 31 is always available.
