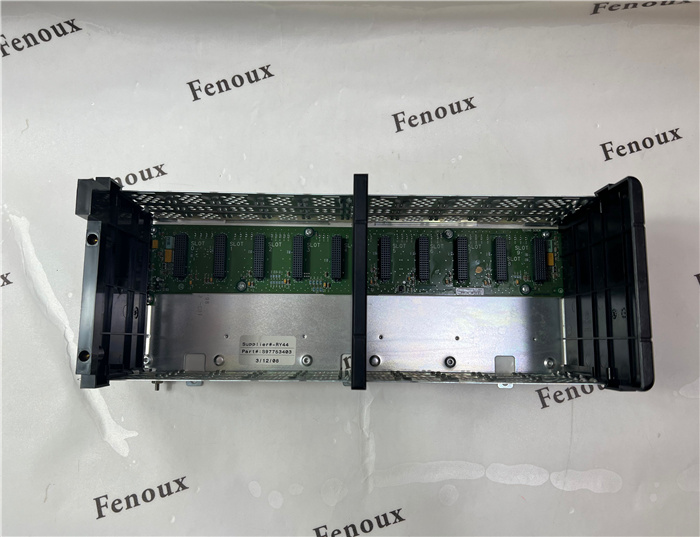

51304042-100 Honeywell Central Control Unit

INQUIRE NOW

Products Name: 51304042-100 Honeywell Central Control Unit

PRODUCT DESCRIPTION

Brand:   Honeywell

Model number: 51304042-100

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.75kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

The PUB and PVB controllers are part of the Spyder family.

The nine controllers are BACnet MS/TP network devices

designed to control HVAC equipment. These controllers

provide many options and advanced system features that

allow state-of-the-art commercial building control. Each

controller is programmable and configurable using the

NIAGARA FRAMEWORK® software.

The Spyder BACnet controllers require the Spyder BACnet

Programmable Feature to be licensed in the WEBpro

workbench tool and the WEBS AX JACE Controller for

programming and downloading. The Spyder BACnet Models

are also available as Individually Licensed Controllers (ILC).

The ILC versions are identical in design and capability in

every detail except for the licensing. The Individual

Licensing of the Spyder ILCs (the License is built in) allows

them to be programmed and downloaded with any brand of

the Niagara Workbench or JACE controller. The Spyder ILCs

are identified with a suffix on the Part Number of -ILC.

Example: PUB6438S-ILC follows all the same Installation

Instructions information as the PUB6438S.

The controllers are for use in VAV (Variable Air Volume),

Unitary, and advanced HVAC control applications. Each

controller contains a host microcontroller to run the main

HVAC application and a second microcontroller for

BACnet MS/TP network communications. Each controller

Communications

Each controller uses a BACnet MS/TP communications

port. The controller’s data is presented to other controllers

over a twisted-pair MS/TP network, which uses the EIA485

signaling standard capable of the following baud

rates: 9.6, 19.2, 38.4, 76.8, or 115.2 kilobits per second

(configured at global controller). The Spyder BACnet

controllers are master devices on the MS/TP network.

Each Spyder BACnet controller uses a high-quality EIA485

transceiver and exerts 1/4 unit load on the MS/TP

network.

Cabling should be selected that meets or exceeds the

BACnet Standard which specifies the following: an MS/TP

EIA-485 network shall use shielded, twisted-pair cable

with characteristic impedance between 100 and 130

ohms. Distributed capacitance between conductors shall

be less than 100 pF per meter (30 pF per foot). Distributed

capacitance between conductors and shield shall be less

that 200 pF per meter (60 pF per foot). Foil or braided

shields are acceptable. The Honeywell tested and

recommended MS/TP cable is Honeywell Cable 3322 (18

AWG, 1-Pair, Shielded, Low Cap, Plenum cable),

alternatively Honeywell Cable 3251 (22 AWG, 1-Pair,

Shielded, Plenum cable) is available and meets the

BACnet Standard requirements

(www.honeywellcable.com).

The BACnet MS/TP network is polarity sensitive. The

maximum BACnet MS/TP network Bus segment length is

4,000 ft. (1,219 m) using recommended wire. Repeaters

must be used when making runs longer than 4,000 ft.

(1,219 m). A maximum of three repeaters can be used

between any two devices.
