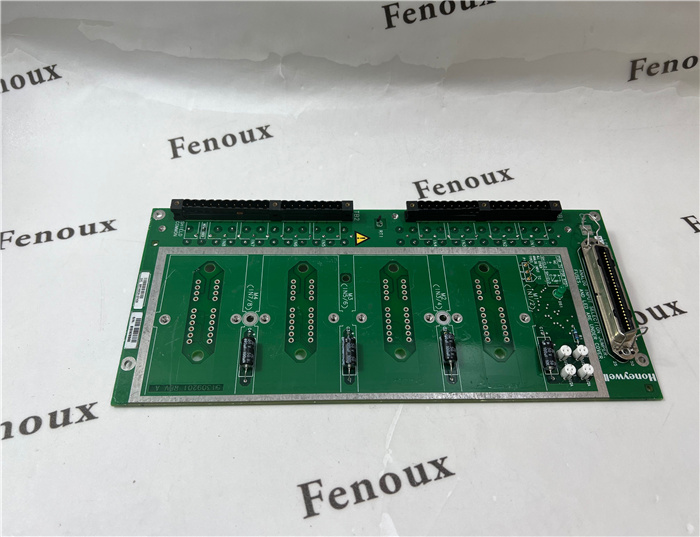

51304423-100 Honeywell Digital Input Module

INQUIRE NOW

Products Name: 51304423-100 Honeywell Digital Input Module

PRODUCT DESCRIPTION

Brand:   Honeywell

Model number: 51304423-100

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.36kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

All Series C components feature an innovative design that supports enhanced heat management. This unique look

provides a significant reduction in overall size for the equivalent function.

The unique features of Series C I/O include:

• I/O Module and field terminations are combined in the same area. The I/O Module is plugged

into the IOTA to eliminate the need for a separate chassis to hold the electronics assemblies.

• Two level “detachable” terminals for landing the field wiring in the enclosure, providing easier

plant installation and maintenance.

• Field power is supplied through the IOTA, with no need for extra power supplies and the

associated craft wired marshalling.

• Redundancy is available directly on the IOTA without any external cabling or redundancy control

devices, by simply adding a second IOM to an IOTA.

• The Series C innovative styling is one of its unique features. This styling includes features to

facilitate the effective use of control hardware in a systems environment. These features include:

• Vertical mounting for more effective wiring since most field wiring applications require entry from the top or bottom of

the systems cabinet.

• An “information circle” for a quick visual cue to draw the Maintenance Technician’s eye to important status

information.

• “Tilted” design for effective heat management within the cabinet enclosure. Since Series C allows for a significant

increase in cabinet density, an effective heat management system is critical for high systems availability.

• Input and output circuits are protected from shorts to alleviate the need for in-line fusing, reducing installation and

maintenance costs.

Function

The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices.

Notable Features

• Extensive self-diagnostics

• Optional redundancy

• Safe-state (FAILOPT) behaviors configurable on a

per channel basis

• Output read-back and alarm on discrepancy

• Non-incendive output

FAILOPT

Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel to

either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOM

device electronics fails.

Open-wire Detection

This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication

CC-PAIH02   Honeywell   Experion Series-C I/O Specification
