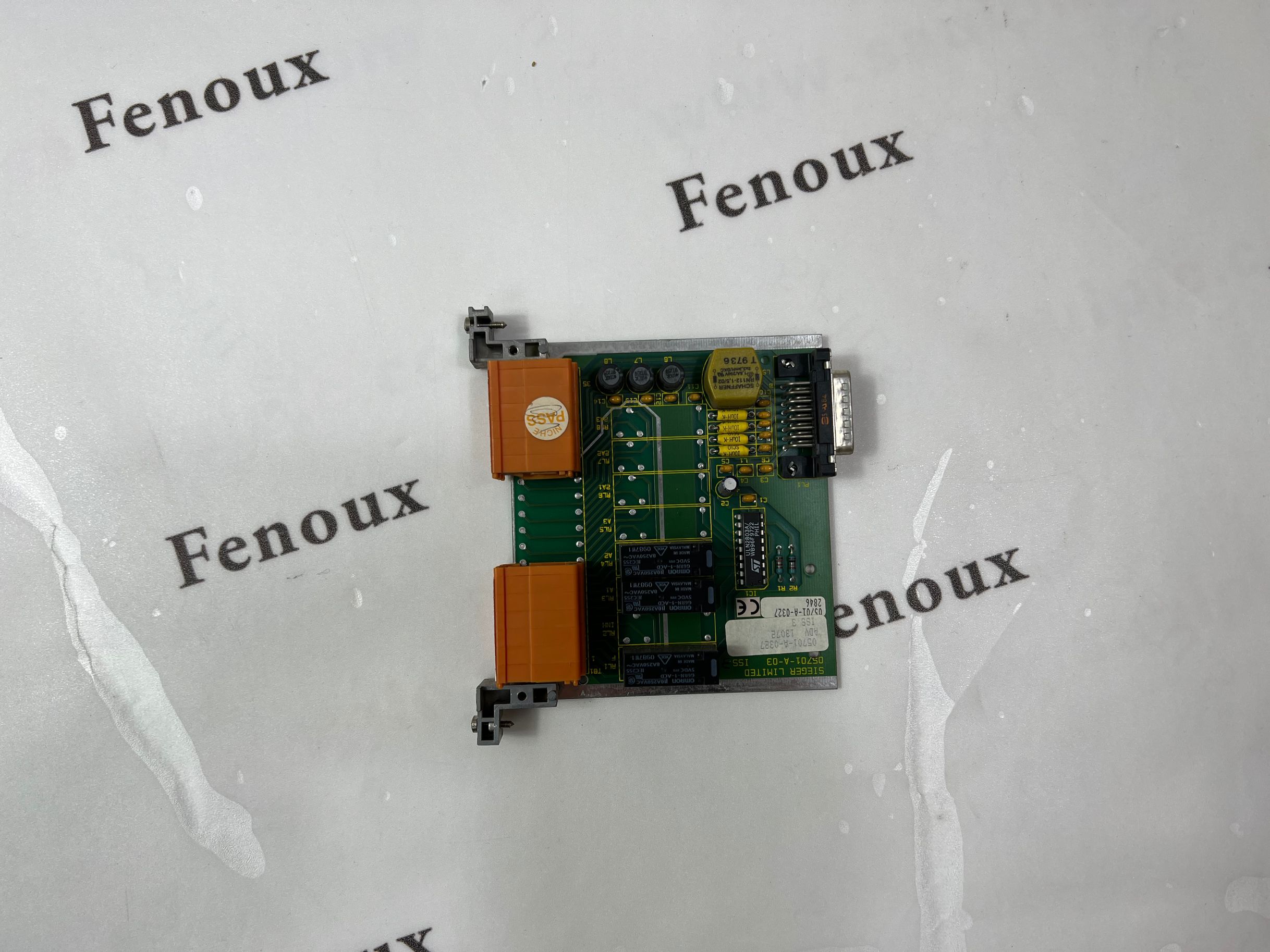

8C-PDODA1 51454472-175 Honeywell Controller module Brand new

A DC fused terminal block (TB) needs to be mounted inside the non-standard Honeywell cabinet to

terminate the incoming DC power cord from the external remote DC power supply. From this

terminal strip, a pair of wire with 18 AWG (0.82 mm2) terminates on the rail-mounted UIO TB. See

Refer : DC power line wiring through system tray in the section Wiring connections to view the

connections of fused TB and FOE.

The below specifications are applicable for each rail-mounted UIO module.

Output Specifications

MUST be MET specifications for Series C system

Reference

Conditions

Full load @ 25° C

(+/-2° C) is the

base reference

conditions.

Additional

conditions are

noted below

Operating Limits

Or

Operating Feature

Comments

DC Output

Voltage (VDC)

20V min

26V max

Must include

combined

effects of

temp, line/load

regulation,

aging effects.

DC OUTPUT

VOLTAGE

STABILITY

Should be not more than

+/- 0.1% for 8 hours, following a 6 hour warmup period

DC output

Holdup Time

For all line voltage

values within the

normal operating

band

The DC output should be maintained (with

maximum load current) for at least 20

milliseconds after a (100%) dropout of the AC

line input

Low Freq -

Ripple &

Noise

From DC to 2x

power line

frequency and at

the switch mode

frequency

Less than 200 milli-volts peak-to-peak For all input

line and

output load

conditions.

Noise on the

Negative

Output

DC to 50MHz Less than 3.0V peak-to-peak Measurement

to be made

between

System

Common and

Safety Ground

Output

Current

Limiting

Power supply

should be capable

of operating

without damage

continuously.

For power supply(ies) of 20A or less, the soft

limit is 135%.

For power supply(ies) between 20A to 40A, the

soft limit is 120%

For safety reasons, once the hard limit (200%)

is reached, the power supply must shutdown

the DC output (0 volts).

No component

rating should

be exceeded

during an

overcurrent

condition.

24V Power

down

When 24V rail falls below 19V, the output

voltage shall monotonically decrease until a

reapplication of the AC line input for proper

system shutdown/operation
