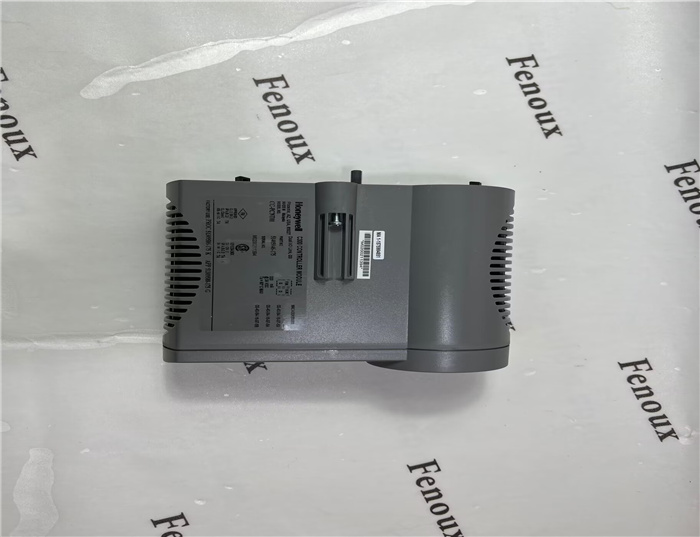

CC-PCNT01 Honeywell C300 Controller Module

INQUIRE NOW

Products Name: CC-PCNT01 Honeywell C300 Controller Module

PRODUCT DESCRIPTION

Brand： Honeywell

Model number： CC-PCNT01

Colour：new

Warranty: 12 months

Lead Time：3-day working day

Country of origin: USA Price: Please contact us

Product weight：0.46kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

Honeywell offers multiple ExperionPKS controllers, ranging from embedded controller platforms with dedicated IO hardware

to PC based control environments for supervisory control tasks or simulation. They all support one or more different network

types to integrate the controllers with the ExperionPKS Server. They share a common Control Execution Environment (CEE)

software infrastructure and a common builder tool. Together with the different station types, they form the ExperionPKS

system. This specifications document provides details specifically related to the ExperionPKS C300 controller.

Note 2 – Exchange Peer-Peer does not count against this limit.

Note 3 – There are 31 connections reserved for Peer-Peer in the C300. 1 connection is reserved for Internal C300 useonly, leaving 30 connections available for User P2P configurations.

Note 4 – 1 DHRIO Module only counts as 1 Target Device even when communicating with multiple PLCs on either of

the two DH+ networks per DHRIO.

Note 5 – Redundant devices that use two PCDI Master blocks count as only one device. Secondary test messages do

count in the messages per second for C300 performance estimation.

Note 6 – PCDI impact on C300 performance can be estimated with the C300 Performance Model worksheet (see

section 2.3.4); important factors are number of PCDI Master blocks, number of PCDI Request block messages

per second, and message data size.

Note 7 – Incoming peer data benefits from the RBE (Report by Exception) comparisons done at the data source, so

only changed parameters contribute to the incoming PPS load.

Note 8 – Outgoing peer data capacity is defined/measured before the RBE (Report by Exception) comparisons are

done, so all parameters requested as peer data contribute to the outgoing PPS load, whether they are

changing or not and sent over the network or not.

Note 9 – CDA Peer connection to a redundant SM consumes 2 PCUs.

Note 10 – PCDI Licenses per Server is limited to 256 total PCDI Device Blocks for all C300s and ACEs combined.

Note 11 - Float, integer, or BOOLEAN values configured constitute one parameter

Note 12- Number of PIOMB blocks that can be instantiated or loaded to the C300 is limited by the C300 CEE memory,

and CPU.

Note 13- Overlap between controller CDA peer and display responder requests was removed for C300v2 and C300E in

R510 release to prevent loss of peer communication during high display subscriptions from process

operational displays.
