DC300K-E-0A3-21-0000-0 Honeywell

The UDC3000 Universal Digital

Controller is Honeywell’s general

purpose microprocessor-based,

stand alone digital controller. It

combines the highest degree of

functionality and operating simplicity offered in a 1/4 DIN size.

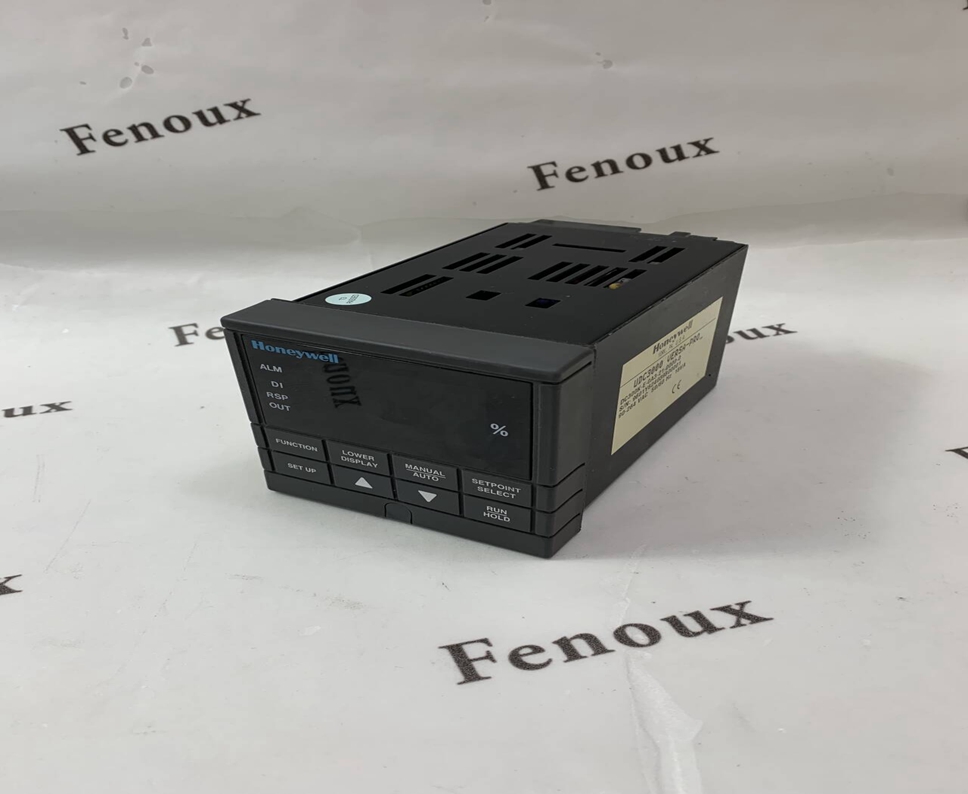

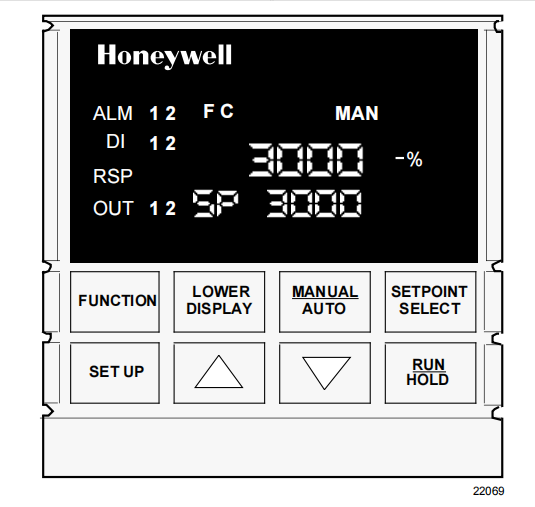

The bright dual displays with multilanguage prompts make the

operator interface easy to read,

understand, and operate.

Programmed sequences of displays assure quick and accurate

entry of all configurable parameters. Simple keystrokes let you

select input and range configuration, set the operating parameters

that meet your process control

needs now, and change them later

to meet new ones.

Description:

Second Input - Isolated high level

input available for remote setpoint

signal, PV signal via digital inputs,

or motor slidewire input. (Table 1)

Auxiliary Output* - This isolated

Auxiliary Output can be scaled from

4-20 mA for 0 to 100% for any

range. It can be configured to

represent Input 1, Input 2, PV,

active Setpoint, Local SP1,

Deviation, or the Control Output.

Communications* - Provides a link

between the UDC3000 and a

Honeywell supplied interface device

capable of communicating via

RS232 (DMCS), or direct

communication via the RS422/485

communications option to a host

computer.

Approval Body Options - FM

approval, CSA certification and UL

Recognition are available options.

UL Recognition applies to

regulatory use only.

2 Digital Inputs - Allows remote

dry contact closure to select one of

the following for each digital input:

• Manual control mode

• Local setpoint 1

• Local setpoint 2

• Direct controller action

• Reset of Limit Controller

• Hold SP Ramp/Programming

• Select PID set 2

• PV = Input 2

• External program reset

• Disable PID integral action

• To Run - SP Ramp/Program

• To Automatic output value

• Manual mode, failsafe output

• Disable keyboard

• Start Timer

• To Auto/Manual Station

• ToTune

Also allows the following selections

to be combined with the above

selections:

• Select PID set 2

• Direct controller action

• Local setpoint 2

• Disable adaptive tune

Transmitter Power - Provides up

to 30 volts to power a 2 wire

transmitter (requires use of alarm 2

open collector output selection or

auxiliary output.)
