Prerequisites
l Control Builder is running

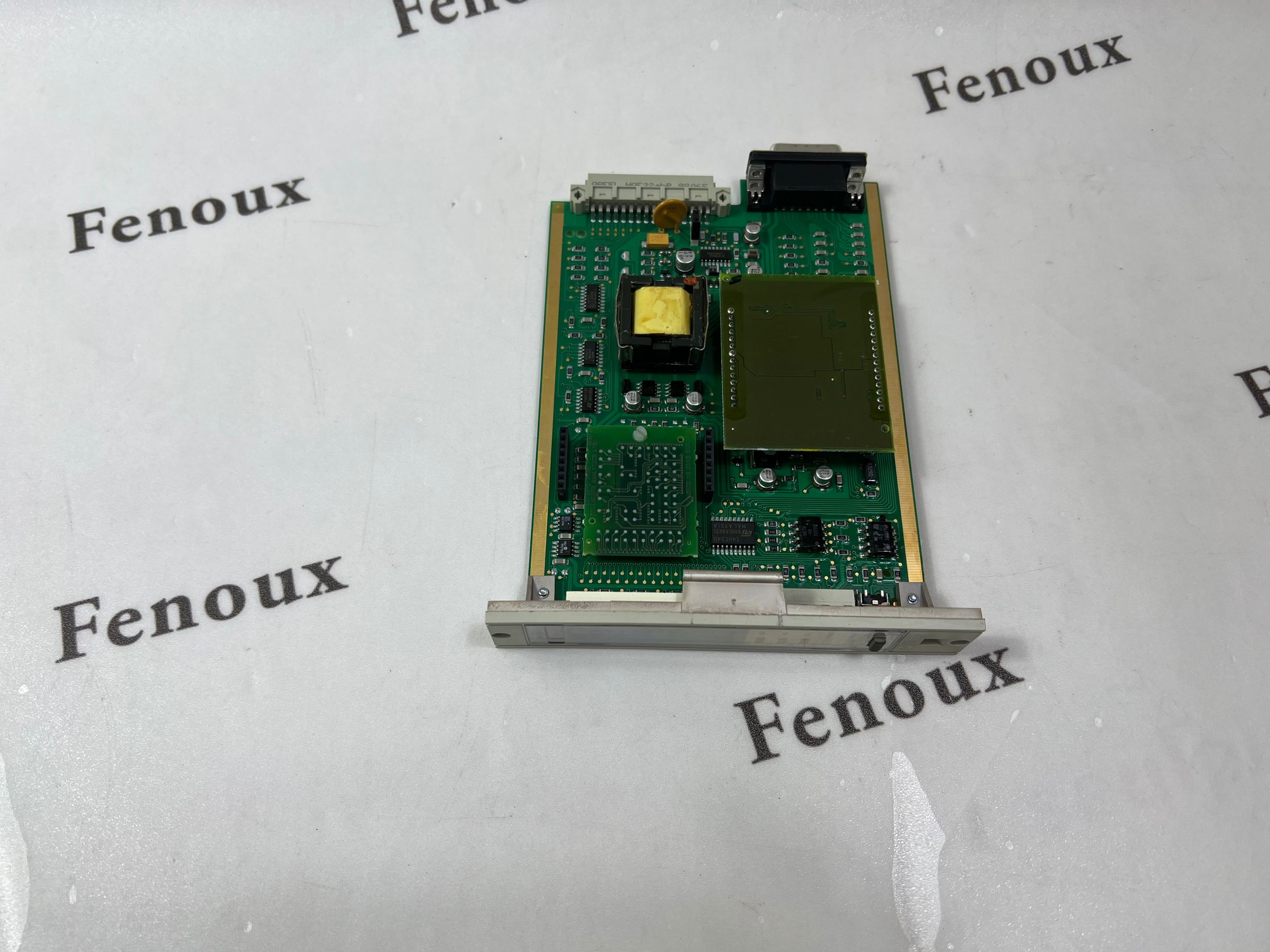

l A Series C I/O control module was created
9.5.2 To configure the Main tab
1. Enter a Tag Name that is more meaningful to you than its default pre-assigned number (ex.
Test Strategy DI Module).
2. Item name is based on relationship established in Enterprise Builder
3. Enter the Module Type.
4. Click the button to the right of the Associated Asset box.
The Point Selection dialog box appears.
5. Select an asset from those configured in the Enterprise Model Database to set the Scope of
Responsibility (SOR) for the point.
NOTE
No validation is done at the configuration time. If you enter an asset that does not
exist in the points database, the associated asset for the point reverts to the server
point. If the asset does exist but is not an area-enabled asset, then the first areaenabled asset up the tree is used for the SOR of that device. A subsequent upload
of that device point to Control Builder returns the area-enabled asset and not the
original non-assignable asset entered.
6. Enter an optional Module Description to explain the I/O Module's function
7. Enter appropriate values for IOM Number to match the plug-in IOM jumper number. If
necessary, press F1 to access on-line help for assistance during this step.
8. If redundancy is required, check the This IOM is redundant check box.
9. If you have configured a Pulse Input Module, select the Maintain On Fault check box, if
required. This parameter provides you the ability to specify the action to be taken by the
system in case of a special condition or faults in the module or its ability to output the selected
stream to the prover signal.
