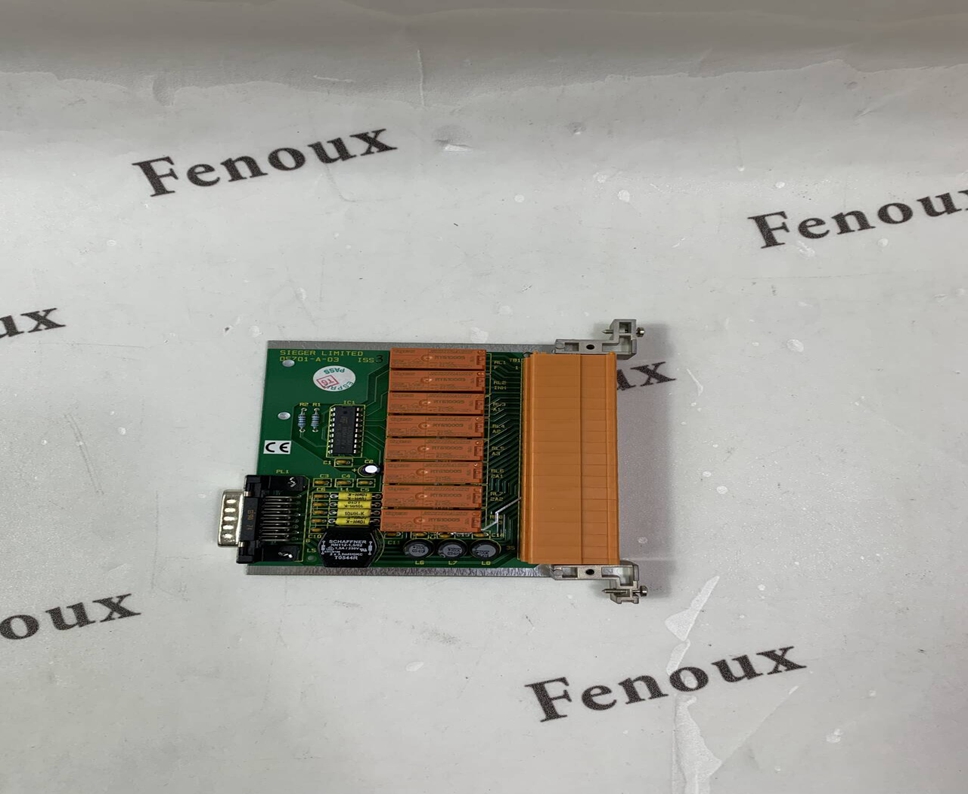

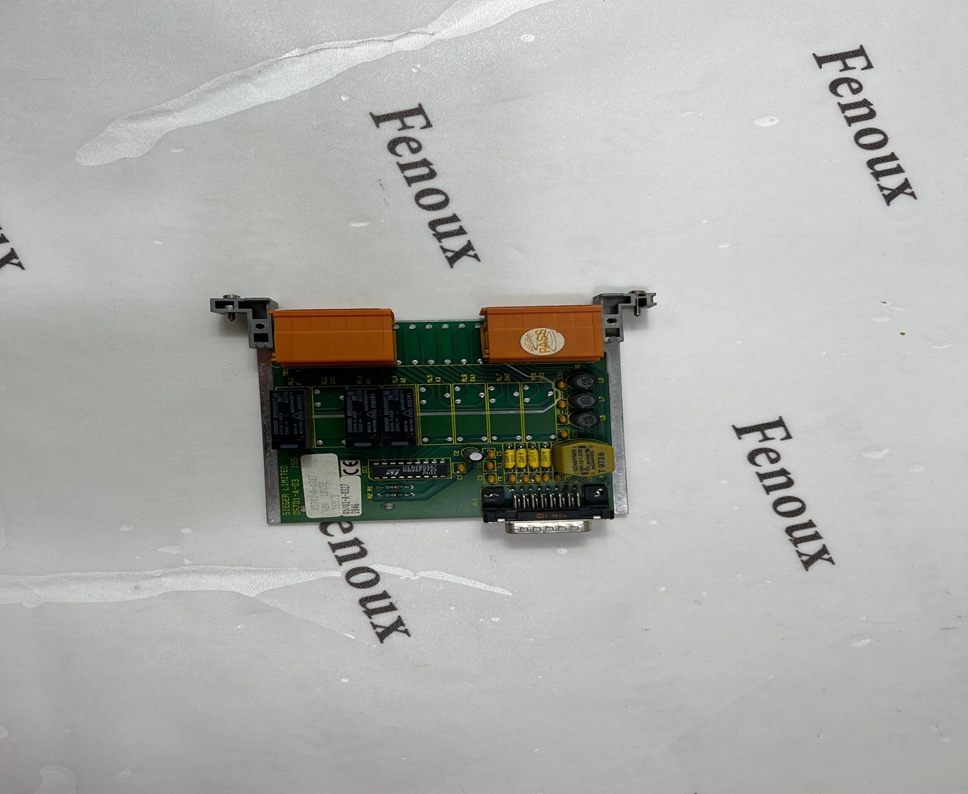

Honeywell 05701-A-03

Two wall mounted cabinets are used to house:

a. the full width 16 channel front access rack,

(Part Number 05701-A-0451)

b. or the eight channel half width front access rack.

(Part Number 05701-A-0452)

A front door on each cabinet provides security and dust protection,

while a clear panel in the door allows the channel card displays to be

viewed when the door is closed. The base of each cabinet contains a

selection of preformed knockout cable gland entries.

Description:

The 5701 Series Control System is part of the System 57 family and is

designed to monitor field mounted industrial gas detectors. The principal

features of the system are:

* Provides up to 16 channels of gas detection in a standard 19'' subrack using a 3U card format.

* Provides up to eight channels of gas detection in a half 19'' subrack using a 3U card format.

* Racking available for both front and rear access field wiring.

* Simple field connections for wire up to 2.5mm2

* Single channel mode of operation for high integrity systems.

* Channel Control Cards removable without disturbing other wiring.

* Catalytic bridge or 4 - 20mA input.

* Optional alarm change-over relay outputs.

* Multi-alarm mode for master, zoned and voted alarms.

* Rising, falling, STEL and LTEL / RATE alarm outputs.

* Update alarm on individual or multi channel alarms.

* Remote inhibit and reset inputs.

* Time delay on switch on and/or switch off of relay outputs.

* Optional 0 - 20mA or 4 - 20mA isolated monitor output.

* Easy to calibrate and operate using a dedicated Engineering card.

* EMC compliant.

* Options provided via Engineering Card:

* Master Alarm Update.

* Event Printers.

* Serial communication using Modbus protocol.
