HPK2-3 51401288-100 Honeywell Programmable controller Brand new

In no event is Honeywell liable to anyone for any direct, special, or consequential damages. The information and specifications in this document are subject to change without notice.

INQUIRE NOW

Products Name: HPK2-3 51401288-100 Honeywell Programmable controller Brand new

PRODUCT DESCRIPTION

Brand:   Honeywell

Model number:HPK2-3 51401288-100

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.5kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service Professional Sales provides 24 hours /7 days online service

HPK2-3 51401288-100  Honeywell  Programmable controller Brand new

Description:

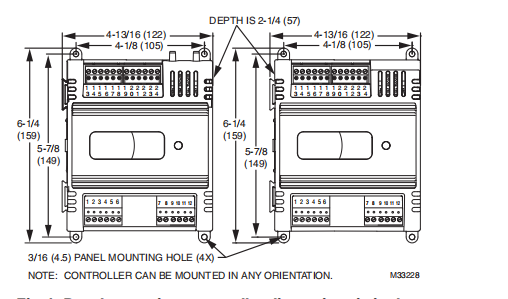

The controller enclosure is constructed of a plastic base

plate and a plastic factory-snap-on cover. The cover does

not need to be removed from the base plate for either

mounting or wiring. Removable terminal blocks are used

for all wiring connections, which allow the controller to be

wired before or after mounting.

The controller can be mounted in any orientation.

Ventilation openings are designed into the cover to allow

proper heat dissipation, regardless of the mounting

orientation.

NOTE: The controller must be mounted in a position that

allows clearance for wiring, servicing, and

removal.

NOTE: For complete mounting information, refer to the

Installation Instructions, form 62-0310.

PVBXXXXAS Mounting (Controllers with

actuators)

The PVBXXXXAS controllers include the direct-coupled

actuator with Declutch mechanism, which is shipped

hard-wired to the controller (using digital outputs 7 and

8).

The actuator mounts directly onto the VAV box damper

shaft and has up to 44 lb-in. (5 Nm) torque, 90-degree

stroke, and 90 second timing at 60 Hz. The actuator is

suitable for mounting onto a 3/8 to 1/2 in. (10 to 13 mm)

square or round VAV box damper shaft. The minimum VAV

box damper shaft length is 1-9/16 in. (40 mm).

After the actuator is mounted to the damper shaft, the

controller mounts to a panel by using four No. 6 or No. 8

machine or sheet metal screws inserted through the

corners of the base plate.
