MVI56-ADMNET ProSoft

The MVI56 Application Development Ethernet Communication Module allows ControlLogix processors to interface easily with Ethernet protocol compatible

devices and hosts.

The ADMNET solution is a powerful module designed with both Client and server support. This broad support enables the module to function as a data collection submaster, or to be a powerful slave as a remote off an HMI host.

Applications for the module are found in most industries, especially

Manufacturing, Oil and Gas, Electrical Power and Food Processing.

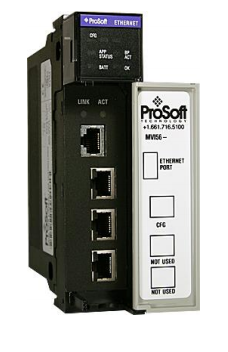

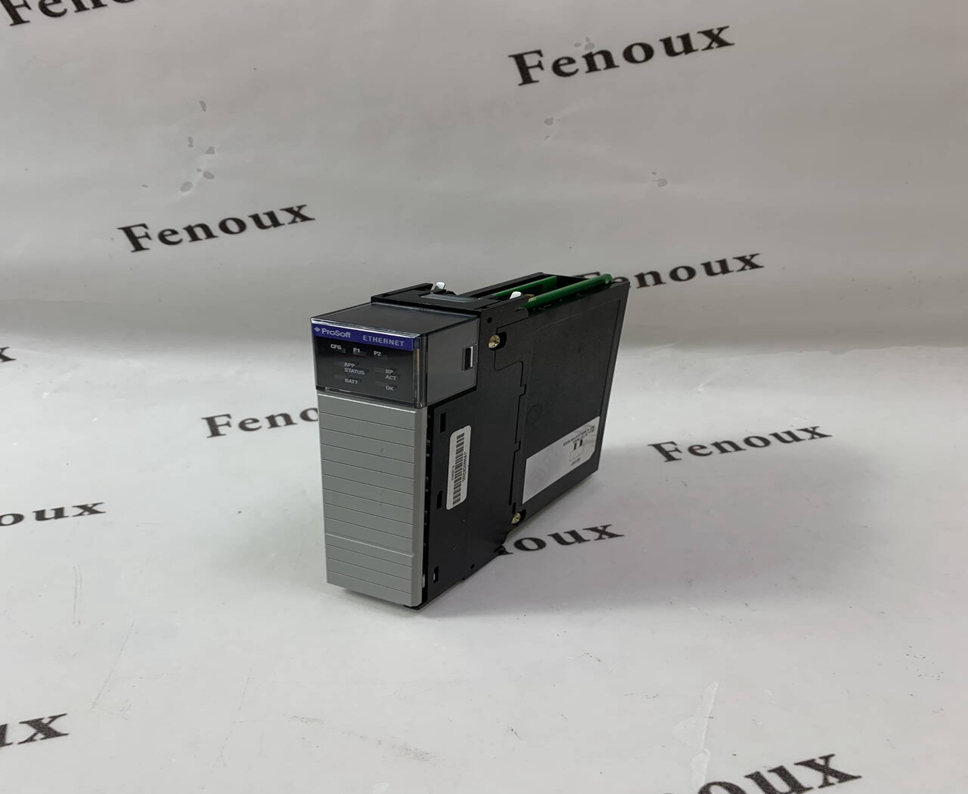

The MVI56-ADMNET module is a single-slot, backplane compatible solution for the ControlLogix platform. It supports two fully isolated serial ports and one Ethernet port, allowing the many field devices to be integrated into the ControlLogix platform with custom user-written 'C' code and various APIs supplied for Ethernet, serial and backplane communication.

General Specifications

 Single Slot - 1756 backplane compatible

 The module is recognized as an Input/Output module, allowing for data transfer between processor and module.

 Ladder Logic is used for data transfer between module and processor. Sample ladder file included.

 Configuration data obtained from configuration text file downloaded to module. Sample configuration file included

 Local or remote rack

'C' Programmable over Ethernet

The ADMNET API is one component of the MVI56-ADM API Suite. The ADMNET API provides a simple module-level interface that is

portable between members of the MVI56 Family. This is useful when developing an application that implements an Ethernet protocol for

a particular device, such as a scale or bar code reader. After an application has been developed, it can be used on any of the MVI56

family modules.

Applications for the ADMNET module may be developed using industry-standard DOS programming tools and the appropriate API

components.

Development Environment

 Operating system: General software DOS 6-XL

 Compatible compiler (16-bit DOS target)

o Digital Mars C++ V8.49 (included)

o Borland C++ V5.02

SDK Includes

 ADM API LIB (library) File

 ADM API Header File

 Complete API Documentation

 Image file creation utility

 Image file download utility

 DigitalMars 'C' compiler

 General software DOS 6-XL

 Example Code Files
