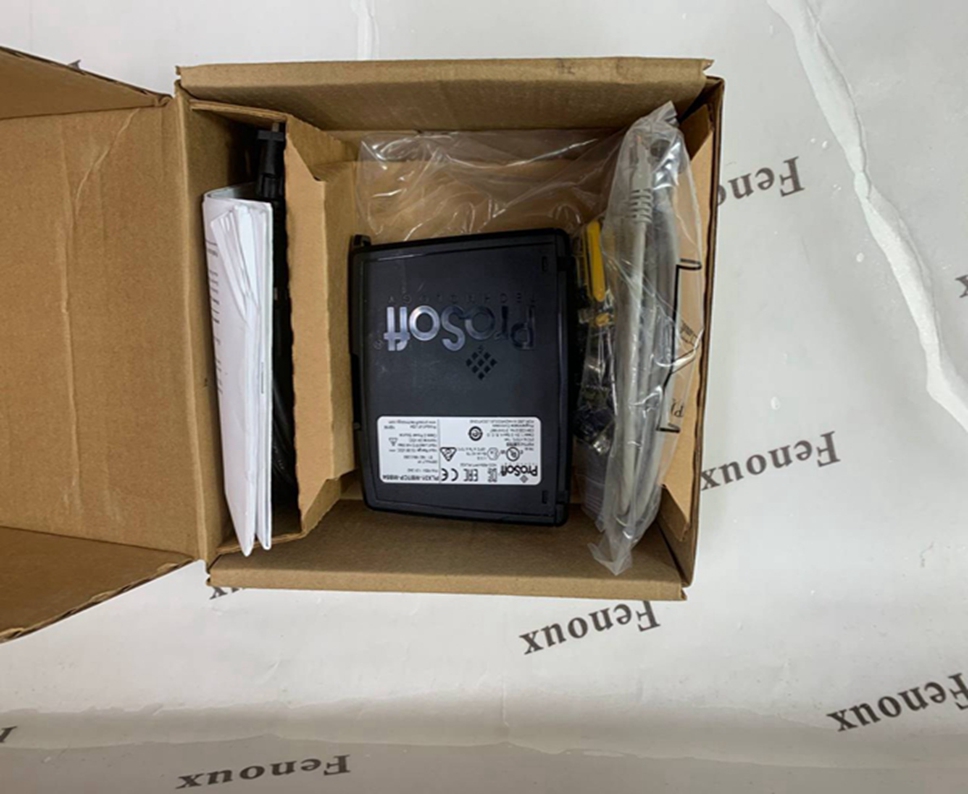

PLX32-EIP-MBTCP Prosoft

Electrical Ratings

ƒBackplane Current Load: 800 mA @ 5 V DC; 3mA @ 24V DC

ƒOperating Temperature: 0 to 60°C (32 to 140°F)

ƒStorage Temperature: –40 to 85°C (–40 to 185°F)

ƒShock: 30g Operational; 50g non-operational; Vibration: 5 g from 10 to 150

Hz

ƒRelative Humidity 5% to 95% (non-condensing)

ƒAll phase conductor sizes must be at least 1.3 mm(squared) and all earth

ground conductors must be at least 4mm(squared).

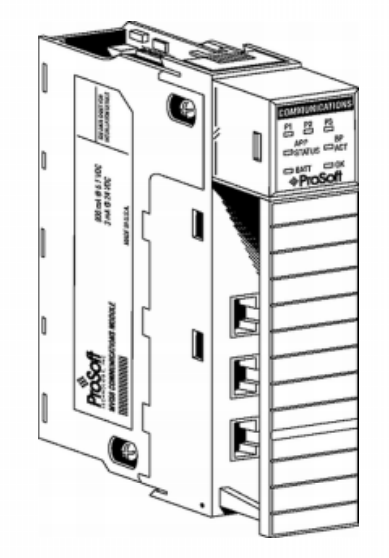

The MVI56 GSC module requires the following minimum hardware and software

components:

ƒRockwell Automation ControlLogix™ processor, with compatible power

supply and one free slot in the rack, for the MVI56 GSC module. The module

requires 800mA of available power.

ƒRockwell Automation RSLogix 5000 programming software version 2.51 or

higher.

ƒRockwell Automation RSLinx communication software

ƒPentium® II 450 MHz minimum. Pentium III 733 MHz (or better)

recommended

ƒSupported operating systems:

o Microsoft Windows XP Professional with Service Pack 1 or 2

o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3

o Microsoft Windows Server 2003

ƒ128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

ƒ100 Mbytes of free hard disk space (or more based on application

requirements)

ƒ256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color

1024 × 768 recommended)

ƒCD-ROM drive

ƒHyperTerminal or other terminal emulator program.

Note: You can install the module in a local or remote rack. For remote rack installation,

the module requires EtherNet/IP or ControlNet communication with the processor.
