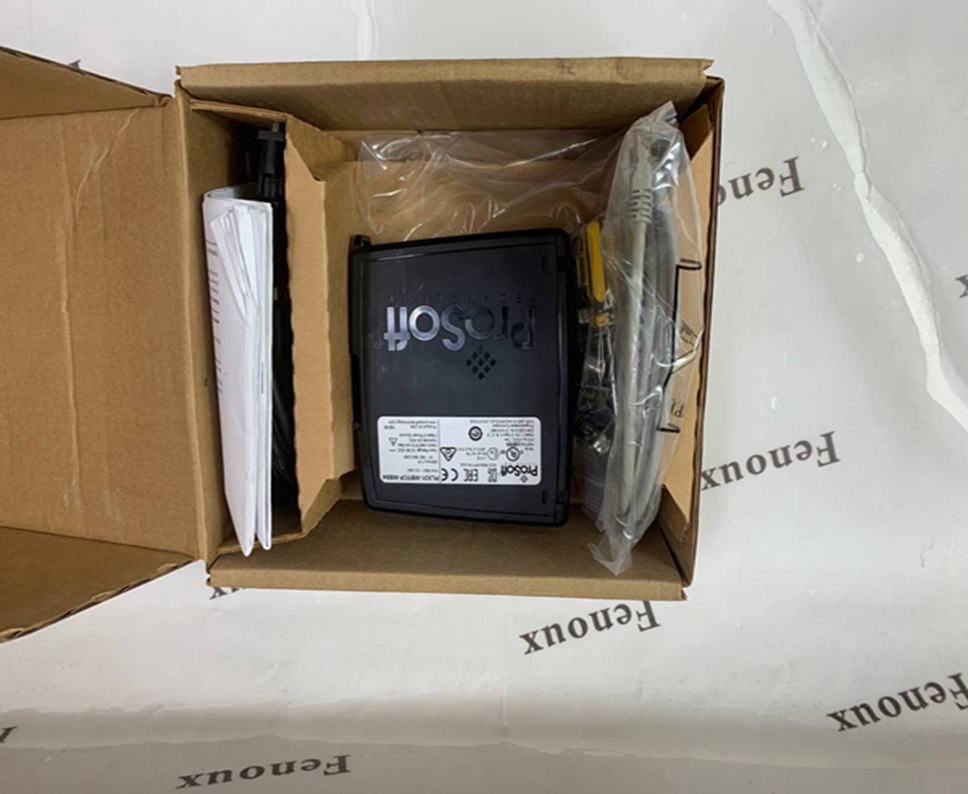

ProSoft ILX69-PBM

Product Description

The ILX69-PBM is a PROFIBUS DP Master module for the CompactLogix™ platform which allows

the PLC to control data exchange on a PROFIBUS network. The ILX69- PBM handles the cyclic

data exchange between the connected PROFIBUS slaves.

Product Features

• Supports PROFIBUS DP Master Class 1 and Class 2

• Up to 127 slave devices

• Baud rates up to 12 Mbps

• Supports DP-V0 and DP-V1 protocols

• 1 RJ-45 connector for PROFIBUS network

• 1 Ethernet port for configuration and diagnostics

• Removable terminal block for easy wiring

• LED indicators for status and diagnostics

Product Parameters

• Dimensions: 4.25 x 2.25 x 1.25 inches

• Weight: 0.5 pounds

• Power consumption: 2.5 watts

• Operating temperature: -40 to 85 degrees Celsius

• Storage temperature: -40 to 85 degrees Celsius

• Humidity: 5 to 95% non-condensing

• Vibration: 5 to 30 Hz, 0.15 inches peak-to-peak

• Shock: 30 G, 11 ms duration

Product Advantages

• Easy to install and configure

• Supports a wide range of PROFIBUS devices

• Provides reliable and efficient communication

• Reduces commissioning time

• Improves productivity

Precautions

• The ILX69-PBM should be installed by a qualified technician.

• The module should be protected from moisture and dust.

• The module should not be operated in an explosive atmosphere.

Product Applications

The ILX69-PBM is used in a variety of applications, including:

• Factory automation

• Process control

• Machine control

• Material handling

• Building automation
