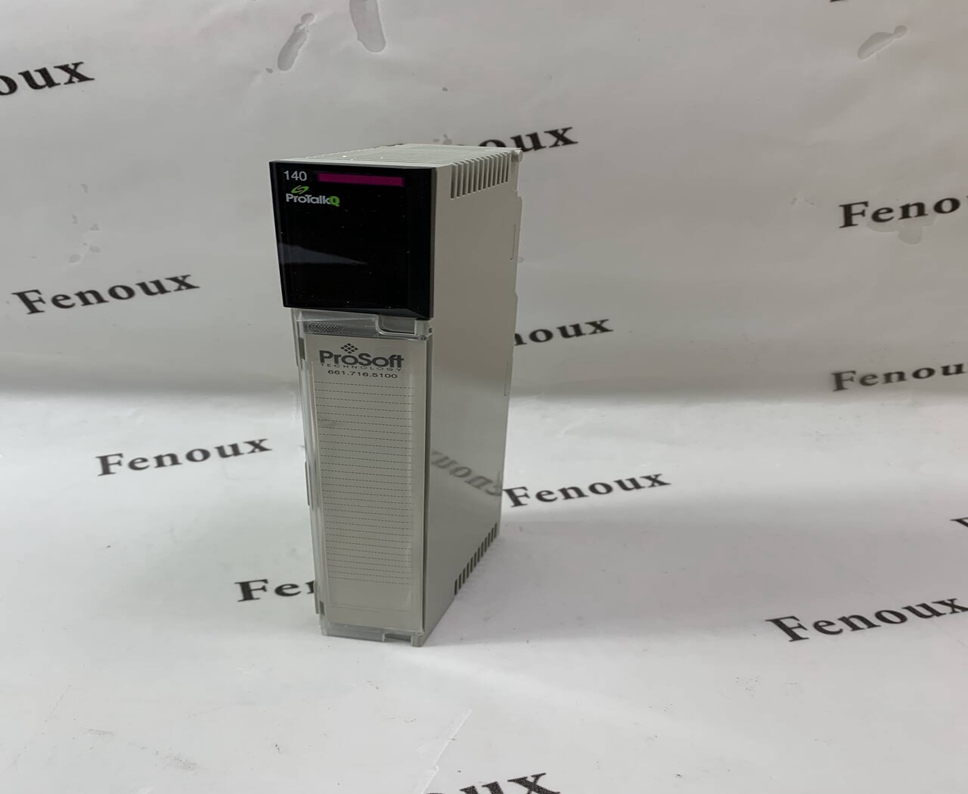

PROSOFT PTQ-PDPMV1

• Single slot - Quantum backplane compatible

• The module is recognized as an Options module and has access to PLC memory

for data transfer

• Configuration data is stored in non-volatile memory in the ProTalk®

 module

• Configuration software for Microsoft Windows XP, 2000 and NT is included with the

module

• Up to six modules can be placed in a rack

• Local rack - The module must be placed in the same rack as the processor

• Compatible with all common Quantum programming packages, including Concept

(version 2.6 or higher), Unity Pro (version 2.2 or higher), ProWORX (version 2.20 or

later) (HSBY only available with Unity Pro environment)

• Quantum data types supported: 3x, 4x

• High speed data transfer across the backplane provides quick data update times

• Sample ladder file available

• Easy-to-use drag and drop Busview configuration interface via ProSoft

Configuration Builder software (see PSW-PCB Datasheet)

• Monitoring and modification of process data and DPV1 acyclic data with online

slave diagnostics

• Supports PROFIBUS PA slaves on the network through DP/PA coupler or link

• Supports up to 125 slave devices with repeaters

• Supports extended diagnostic data (DPV1)

• Supports all standardized baud rates, up to 12 Mbits/s

• Auto baud detection at all valid PROFIBUS DPV1 rates

• Supports PROFIdrive 3.1 compliant parameter read and write operations

• Supports Sync and Freeze commands

• Alarm indications and confirmations handling (DPV1)

• Supports Multicast and Broadcast telegrams (DPV1)

• CRC checksum determination of slave configuration consistency to processor

• FDT/DTM PROFIBUS Master transport communication DTM software included

(Product Number PSW-CDTM-PDPM)

Hot Standby

• Hot Standby features support the SE 140 671 CPU

• Supports up to six PTQ-PDPMV1 Hot Standby modules per rack

• Diagnostic and status words are provided for Active Primary and Passive

Secondary Master health status

• PROFIBUS switchover time will be nominal 100 ms not to exceed 300 milliseconds

• Cable break detection with segmented network slave quantity information

• PROFIBUS health messages are generated from secondary Master via FDL ping

services

• No setup parameters required. Module automatically detects Hot Standby system

Physical

• PROFIBUS DPV1 RS-485 interface with a 9-pin D shell female connector and

isolated Opto-Couplers

• Master Status LED Indicators for Operations, Network Drop Communication,

Master Token-Hold
