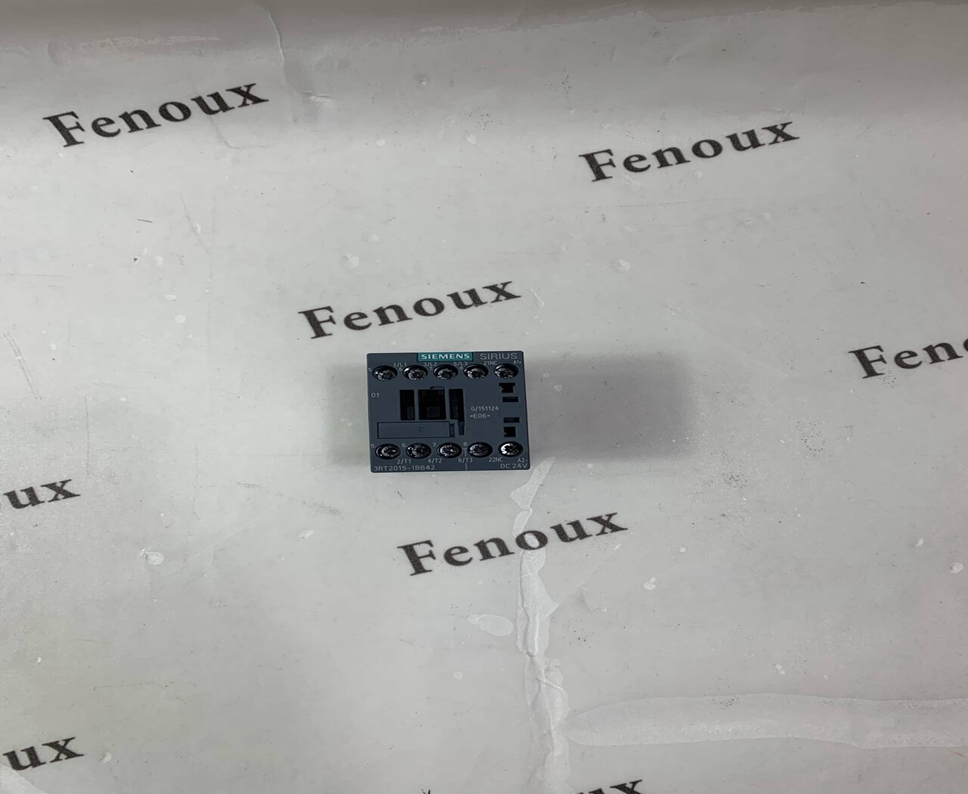

3RT2015-1BB42 SIEMENS

product brand name SIRIUS

Product designation 3RT2 contactor

General technical data:

Size of contactor S00

Product expansion

● function module for communication No

● Auxiliary switch Yes

Insulation voltage

● rated value 690 V

Surge voltage resistance rated value 6 kV

maximum permissible voltage for safe isolation

● between coil and main contacts acc. to EN

60947-1

400 V

Protection class IP

● on the front IP20

● of the terminal IP20

Degree of pollution 3

Shock resistance

● at rectangular impulse

— at DC 6,7g / 5 ms, 4,2g / 10 ms

● with sine pulse

— at DC 10,5g / 5 ms, 6,6g / 10 ms

Mechanical service life (switching cycles)

● of contactor typical 30 000 000

● of the contactor with added electronicscompatible auxiliary switch block typical

5 000 000

● of the contactor with added auxiliary switch

block typical

10 000 000

Ambient conditions:

Installation altitude at height above sea level

maximum

2 000 m

Ambient temperature

● during operation -25 ... +60 °C

● during storage -55 ... +80 °C

Main circuit:

Number of NO contacts for main contacts 3

Number of NC contacts for main contacts 0

Operating voltage

● at AC-3 rated value maximum 690 V

Operating current

● at AC-1 at 400 V

— at ambient temperature 40 °C rated value 18 A

● at AC-1 up to 690 V

— at ambient temperature 40 °C rated value 18 A

— at ambient temperature 60 °C rated value 16 A

● at AC-2 at 400 V rated value 7 A

● at AC-3

— at 400 V rated value 7 A

— at 500 V rated value 6 A

— at 690 V rated value 4.9 A

Connectable conductor cross-section in main circuit

at AC-1

● at 60 °C minimum permissible 2.5 mm²

● at 40 °C minimum permissible 2.5 mm²

Operating current for approx. 200000 operating

cycles at AC-4

● at 400 V rated value 2.6 A

● at 690 V rated value 1.8 A

Operating current

● at 1 current path at DC-1

— at 24 V rated value 15 A
