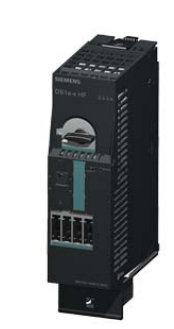

3RK1301-0CB10-0AB4 Siemens

product designation Motor starters

design of the product direct starter

product type designation ET 200S

General technical data

trip class CLASS 5, 10, 15, 20

product function on-site operation Yes

power loss [W] for rated value of the current at AC in hot

operating state

18 W

● per pole 6 W

power loss [W] for rated value of the current without

load current share typical

6.36 W

insulation voltage rated value 500 V

degree of pollution 3 at 400 V, 2 at 500 V according to IEC60664 (IEC61131)

surge voltage resistance rated value 6 kV

maximum permissible voltage for safe isolation between

main and auxiliary circuit

400 V

shock resistance 5g / 11 ms

vibration resistance 2g

mechanical service life (switching cycles) of the main

contacts typical

100 000

type of assignment 2

reference code acc. to IEC 81346-2 Q

Substance Prohibitance (Date) 28.05.2009 00:00:00

product function

● direct start Yes

● reverse starting No

product component motor brake output Yes

product feature

● brake control with 230 V AC No

● brake control with 24 V DC No

● brake control with 180 V DC No

● brake control with 500 V DC No

product extension braking module for brake control Yes

product function short circuit protection Yes

design of short-circuit protection circuit-breakers

breaking capacity maximum short-circuit current (Icu)

● at 400 V rated value 50 kA
