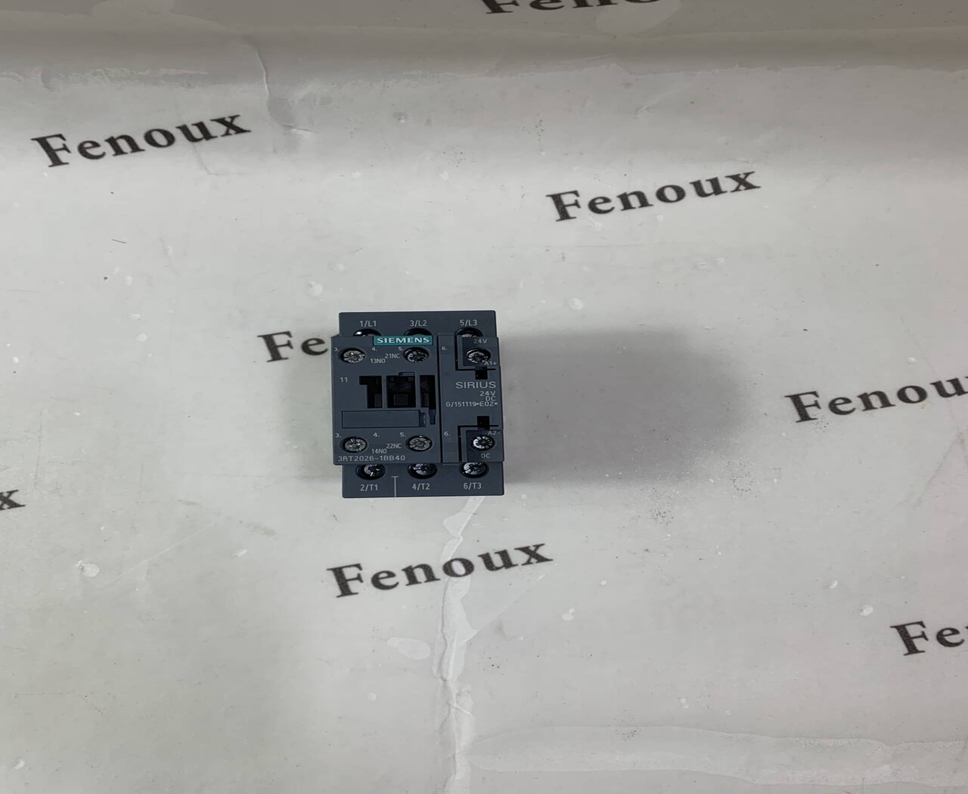

3RT2026-1BB40 SIEMENS

— at 440 V Rated value 1 A

— at 600 V Rated value 0.8 A

● at DC-3 at DC-5

— at 110 V Rated value 15 A

— at 220 V Rated value 3 A

— at 24 V Rated value 35 A

— at 440 V Rated value 0.27 A

— at 600 V Rated value 0.16 A

Operating current with 3 current paths in series

● at DC-1

— at 24 V Rated value 35 A

— at 110 V Rated value 35 A

— at 220 V Rated value 35 A

— at 440 V Rated value 2.9 A

— at 600 V Rated value 1.4 A

● at DC-3 at DC-5

— at 110 V Rated value 35 A

— at 220 V Rated value 10 A

— at 24 V Rated value 35 A

— at 440 V Rated value 0.6 A

— at 600 V Rated value 0.6 A

Operating power

● at AC-1

— at 230 V at 60 °C Rated value 13.3 kW

— at 400 V at 60 °C Rated value 23 kW

— at 690 V at 60 °C Rated value 40 kW

Operating power for ≥ 200000 operating cycles at

AC-4

● at 400 V Rated value 4.4 kW

● at 690 V Rated value 7.7 kW

Active power loss at AC-3 at 400 V for rated value of

the operating current per conductor

1.6 W

Operating frequency

● at AC-1 maximum 1 000 1/h

● at AC-2 maximum 750 1/h

● at AC-3 maximum 750 1/h

● at AC-4 maximum 250 1/h

No-load switching frequency

● with AC 5 000 1/h

● for DC 1 500 1/h
