drives to higher-level automation systems via PROFIBUS.
information on the current operating status.
Voltage is supplied from the basic unit.
Transfer rate
• with PROFIBUS 9.6 kbit/s … 12 Mbit/s
• With PROFIBUS PA 45.45 kbit/s
Interfaces
Number of electrical/optical connections / for network components or
terminal equipment / maximum 3
Number of electrical connections
• for network components and terminal equipment 1
• for power supply 1
Design of the electrical connection

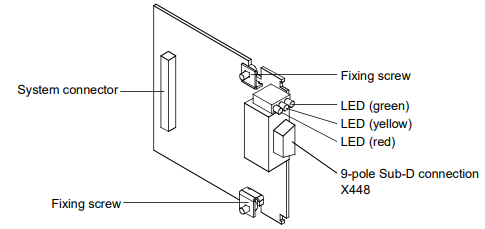

• for network components and terminal equipment 9-pin Sub-D socket
• for power supply 3-pole terminal block
Number of optical interfaces / for optical waveguide 2
Design of the optical interface / for optical waveguide Duplex port
Optical data
Damping ratio / of FOC transmission link
• for PCF FOC with 200/230 µm / at 10 dB/km 3 dB
• for POF FOC with 980/1000 µm / at 230 dB/km 13 dB
Signal delay time in bit time 6.5 bit
Injectable optical power relating to 1 mW / of FOC transmission link
• for PCF FOC with 200/230 µm / at 10 dB/km -16 dB
• for POF FOC with 980/1000 µm / at 230 dB/km -5.9 dB
Optical sensitivity relating to 1 mW / of FOC transmission link
• for PCF FOC with 200/230 µm / at 10 dB/km -22 dB
• for POF FOC with 980/1000 µm / at 230 dB/km -20 dB
Wavelength / of FOC transmission link
• for PCF FOC with 200/230 µm / at 10 dB/km 660 nm
• for POF FOC with 980/1000 µm / at 230 dB/km 660 nm
Cable length
• for PCF FOC with 200/230 µm / at 10 dB/km / maximum 300 m
• for POF FOC with 980/1000 µm / at 230 dB/km / maximum 50 m
