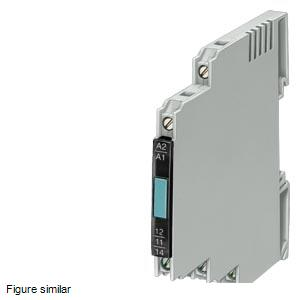

3XT7004-2MB02 Siemens

INPUT INTERFACE TWO-TIER TERMINAL-TYPE COUPLING

RELAY 1N0, GOLD-PLATED, AC/DC 24V SCREW TERMINAL

WIDTH 6.2MM

General technical data:

Type of voltage AC/DC

Supply voltage frequency for auxiliary and control

current circuit Rated value

50 ... 60 Hz

Control supply voltage

● at AC

— at 50 Hz Rated value

— minimum 24 V

— maximum 24 V

— at 60 Hz Rated value

— minimum 24 V

— maximum 24 V

● at DC Rated value

— minimum 24 V

— maximum 24 V

Number of NC contacts for auxiliary contacts 0

Number of NO contacts for auxiliary contacts 1

Number of CO contacts for auxiliary contacts 0

● at DC-13

— at 24 V 1 A

— at 110 V 0.2 A

— at 230 V 0.1 A

● at AC-15

— at 230 V 2 A

Switching behavior monostable

Equipment marking acc. to DIN 40719 extended

according to IEC 204-2 acc. to IEC 750K

Equipment marking acc. to DIN EN 61346-2 K

Mechanical data:

Type of electrical connection screw-type terminals

Type of electrical connection Plug-in socket No

Design of the relay operating mechanism poled

Design of the switching function positively driven No

Product component Plug-in socket No

Width 6.2 mm

Height 60 mm

Depth 62 mm

Ambient conditions:

Protection class IP IP20

Ambient temperature during operation -25 ... +60 °C
