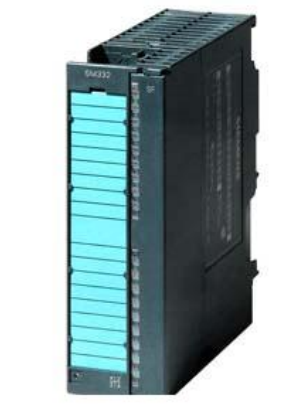

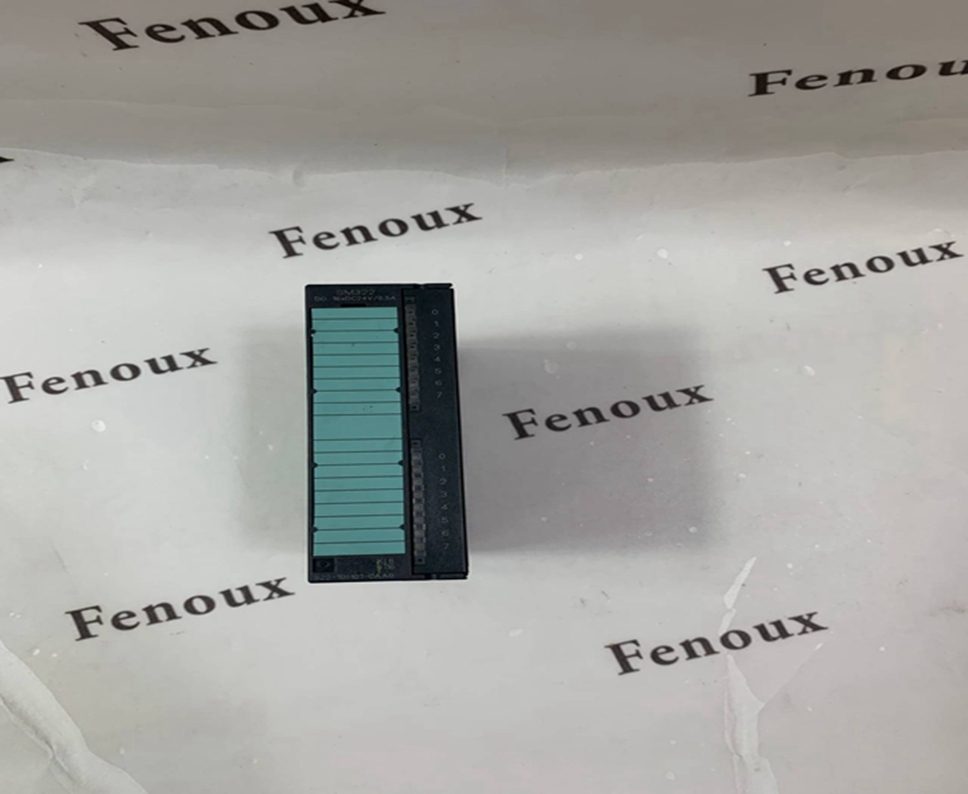

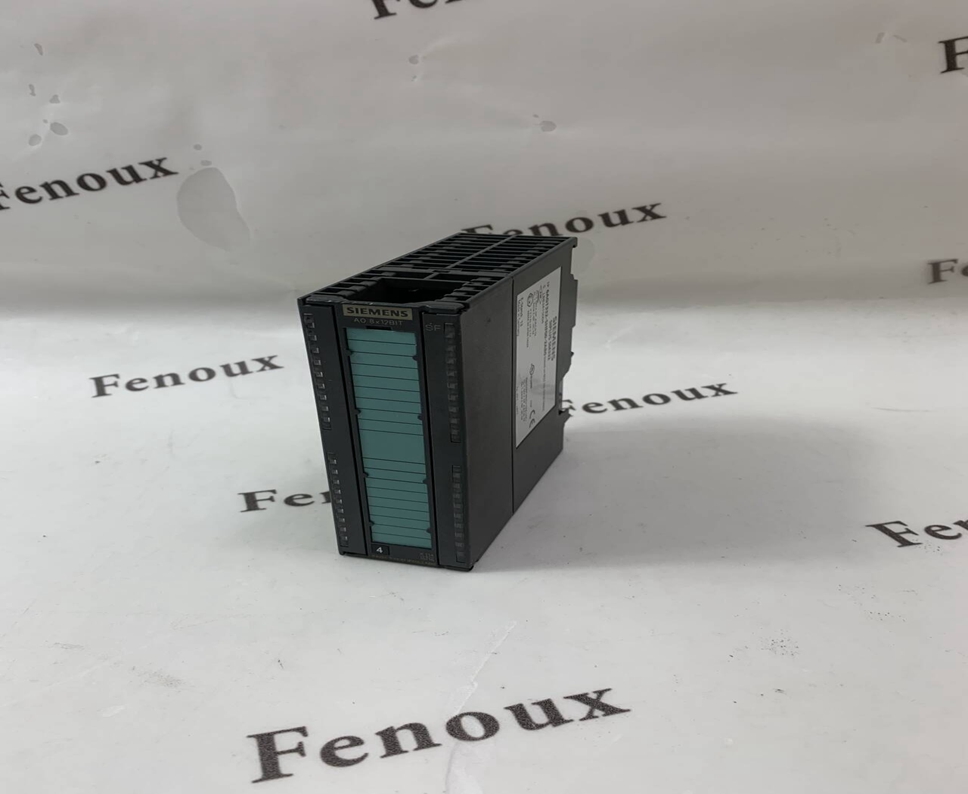

6AG1332-5HF00-2AB0 Siemens

Load voltage L+

● Rated value (DC) 24 V

Input current

from load voltage L+ (without load), max. 340 mA

from backplane bus 5 V DC, max. 100 mA

Power losses

Power loss, typ. 6 W

Analog outputs

Number of analog outputs 8; 4 @ +70 °C

Voltage output, short-circuit protection Yes

Voltage output, short-circuit current, max. 25 mA

Current output, no-load voltage, max. 18 V

Output ranges, voltage

● 0 to 10 V Yes

● 1 V to 5 V Yes

● -10 V to +10 V Yes

Output ranges, current

● 0 to 20 mA Yes

● -20 mA to +20 mA Yes

● 4 mA to 20 mA Yes

Load impedance (in rated range of output)

● with voltage outputs, min. 1 kΩ

● with voltage outputs, capacitive load, max. 1 µF

● with current outputs, max. 500 Ω

● with current outputs, inductive load, max. 10 mH

Cable length

● shielded, max. 200 m

Analog value creation

Integration and conversion time/resolution per channel

● Resolution with overrange (bit including sign),

max.

12 bit; +/-10 V, +/-20 mA, 4 to 20 mA, 1 to 5 V: 11 bits + sign; 0 to

10 V, 0 to 20 mA: 12 bits

● Conversion time (per channel) 0.8 ms

Settling time

● for resistive load 0.2 ms

● for capacitive load 3.3 ms

● for inductive load 0.5 ms; 0.5 ms (1 mH); 3.3 ms (10 mH)
