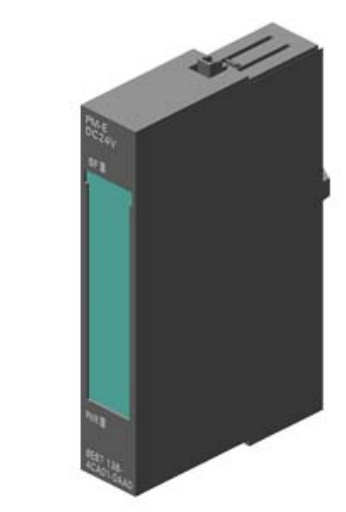

6ES7138-4CA01-0AA0 SIEMENS

Load voltage L+

● Rated value (DC) 24 V

● Short-circuit protection No; external (e.g. automatic circuit breaker), tripping characteristic

C

● Reverse polarity protection Yes

Input current

from load voltage L+ (without load), max. 4 mA

Current carrying capacity

up to 60 °C, max. 10 A

Power loss

Power loss, typ. 0.1 W

Interrupts/diagnostics/status information

Diagnostic messages

● missing load voltage Yes

Diagnostics indication LED

● Rated load voltage PWR (green) Yes

● Group error SF (red) Yes

Parameter

Remark 3 byte

missing load voltage Disable / enable

Potential separation

primary/secondary Yes; between rated load voltage and backplane bus, between

power modules

Isolation

Isolation tested with 500 V DC

Dimensions

Width 15 mm

Height 81 mm

Depth 52 mm

Weights

Weight, approx. 35 g
