Product Description:

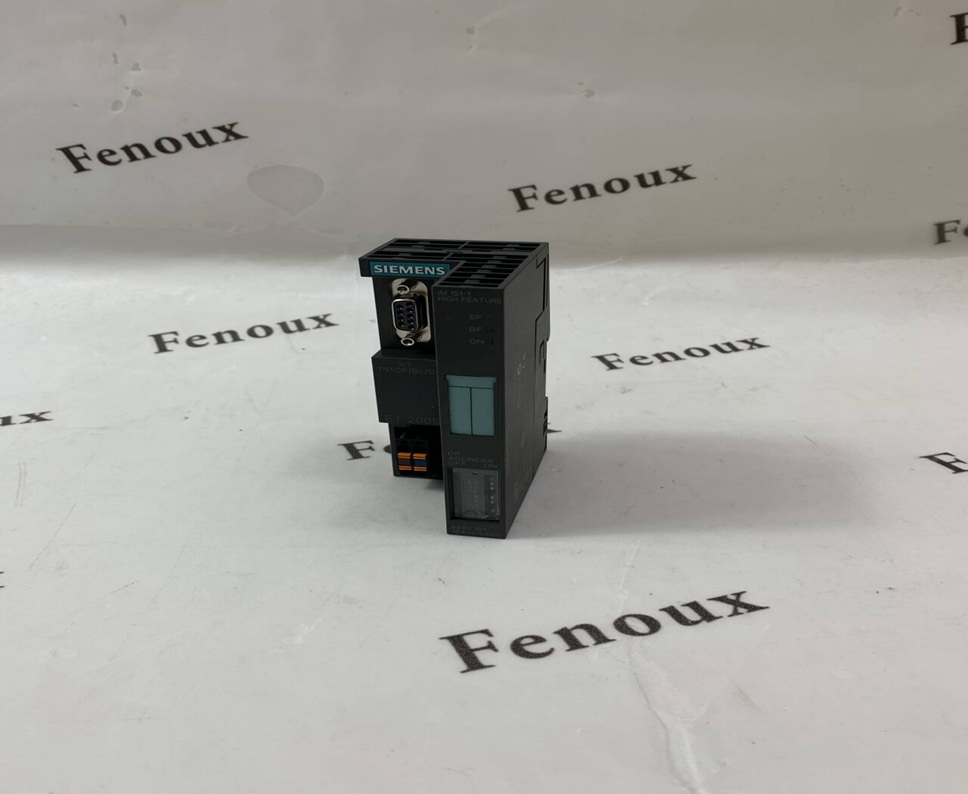

The SIMATIC DP, Interface module IM151-1 High Feature for ET 200S is a high-performance interface module for the SIMATIC DP distributed I/O system. It can be used to connect
up to 63 ET 200S I/O modules at a transmission rate of up to 12 Mbit/s. The IM151-1 High Feature also supports isochronous mode for real-time applications.
Product Features:
High transmission rate of up to 12 Mbit/s
Supports up to 63 ET 200S I/O modules
Supports isochronous mode for real-time applications
9-pin D-sub bus connection with termination module
Compact design for space-saving installation
Product Benefits:
The high transmission rate of the IM151-1 High Feature makes it ideal for applications that require fast data transfer.
The ability to connect up to 63 ET 200S I/O modules makes the IM151-1 High Feature a versatile solution for a wide range of applications.
The support for isochronous mode makes the IM151-1 High Feature suitable for real-time applications.
The 9-pin D-sub bus connection with termination module makes the IM151-1 High Feature easy to install and maintain.
The compact design of the IM151-1 High Feature makes it ideal for space-constrained applications.
Product Applications:
Manufacturing
Process control
Building automation
Automotive
Packaging
Additional Notes:
The IM151-1 High Feature is a spare part. Please visit the Siemens Spares & Service section for more information.
If you need assistance, please contact your local Siemens office.
Product Data:
Product family: SIMATIC DP
Product type: Interface module
Product name: IM151-1 High Feature
Article number: 6ES7151-1BA02-0AB0
Transmission rate: Up to 12 Mbit/s
Number of I/O modules: Up to 63
Mode: Isochronous
Bus connection: 9-pin D-sub
Termination module: Included
Dimensions: 85 x 126 x 70 mm
Weight: 0.171 kg
Country of origin: Germany
Please note:
This product information is for informational purposes only. Please refer to the Siemens product documentation for detailed product specifications and instructions.
Siemens products are subject to change without notice.
