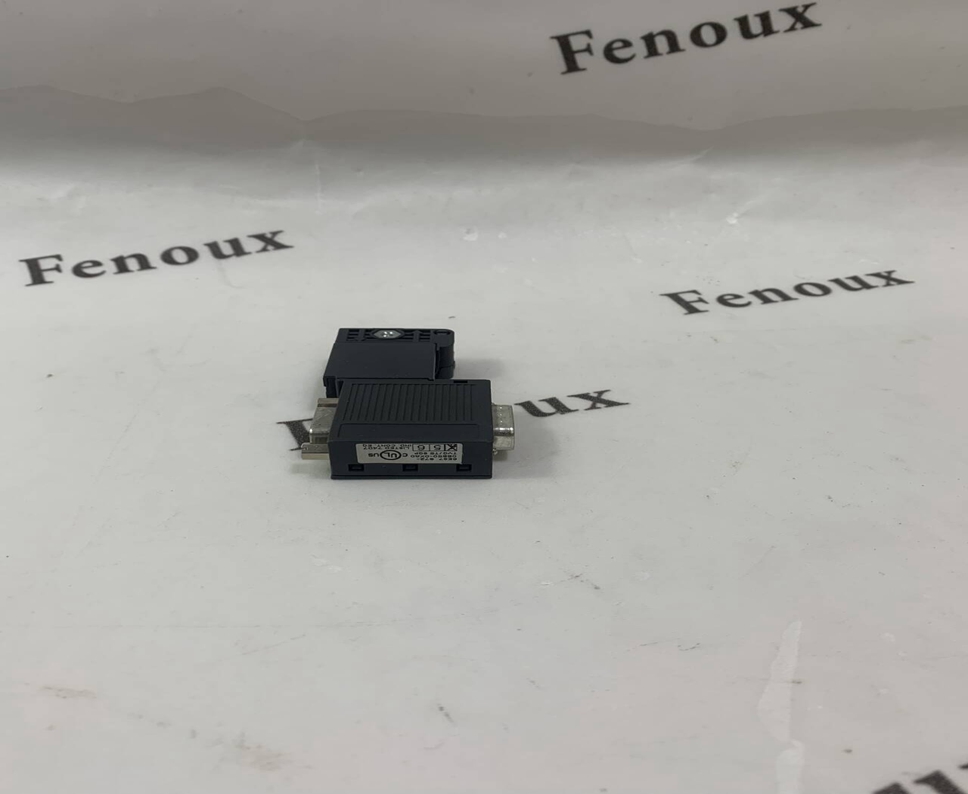

product description PROFIBUS bus connector, RS 485, Fast Connect, with programming port,
suitability for use for connecting PROFIBUS nodes to the PROFIBUS bus cable
transfer rate
transfer rate / with PROFIBUS DP 9.6 kbit/s ... 12 Mbit/s
interfaces
number of electrical connections
● for PROFIBUS cables 2
● for network components or terminal equipment 1
type of electrical connection
● for PROFIBUS cables Integrated insulation displacement contacts for 2-wire PB FC installation
cables
● for network components or terminal equipment 9-pin sub D connector
type of electrical connection / FastConnect Yes
mechanical data
design of terminating resistor Resistor combination integrated and connectable via slide switch
material / of the enclosure plastic
locking mechanism design Screwed joint
design, dimensions and weights
type of cable outlet 90 degree cable outlet
width 15.8 mm
height 59 mm
depth 35.6 mm
net weight 45 g
ambient conditions
ambient temperature
● during operation -25 ... +60 °C
● during storage -40 ... +70 °C
● during transport -40 ... +70 °C
protection class IP IP20
product features, product functions, product components / general
product feature
● silicon-free Yes
product component
● PG connection socket Yes
● strain relief Yes
standards, specifications, approvals
certificate of suitability
