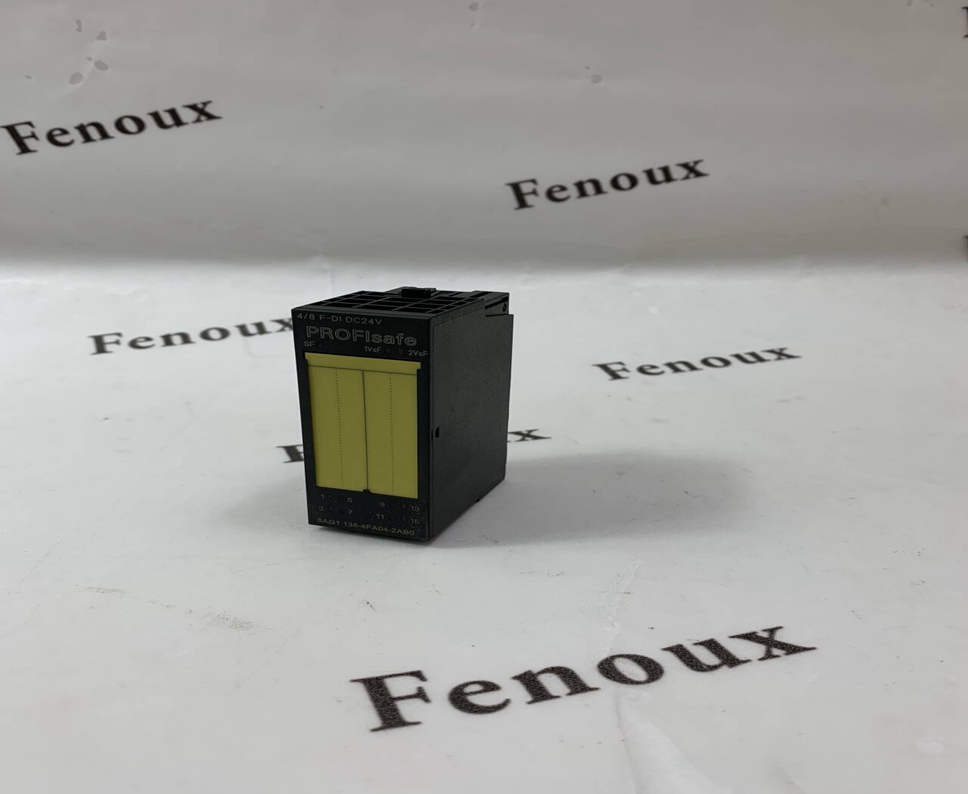

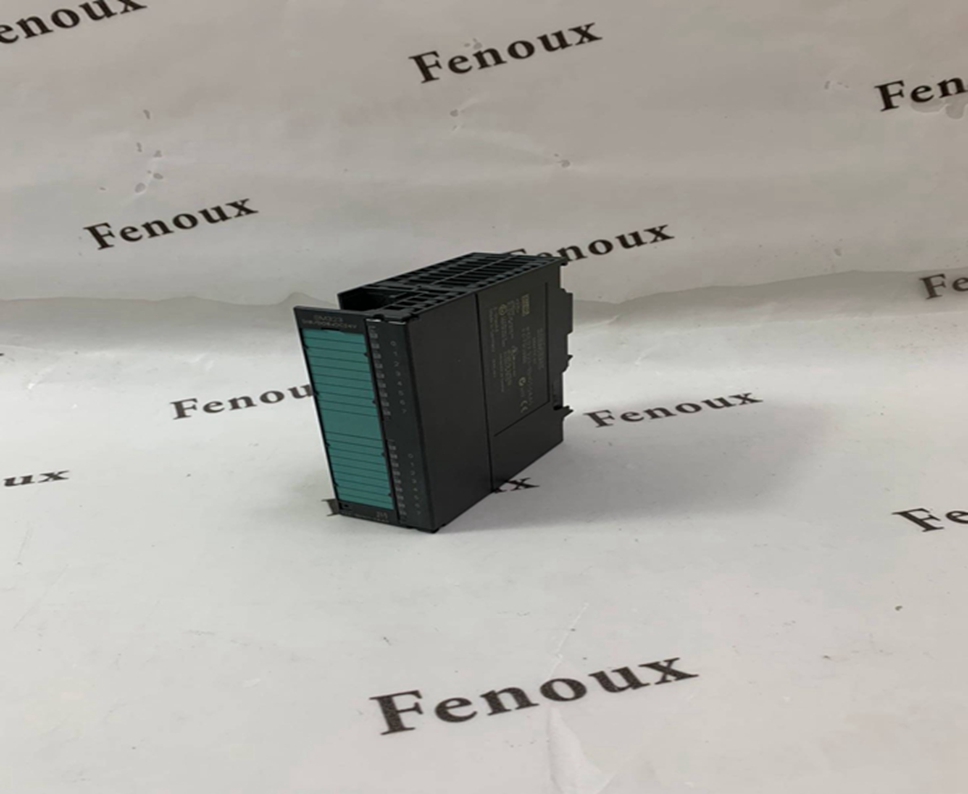

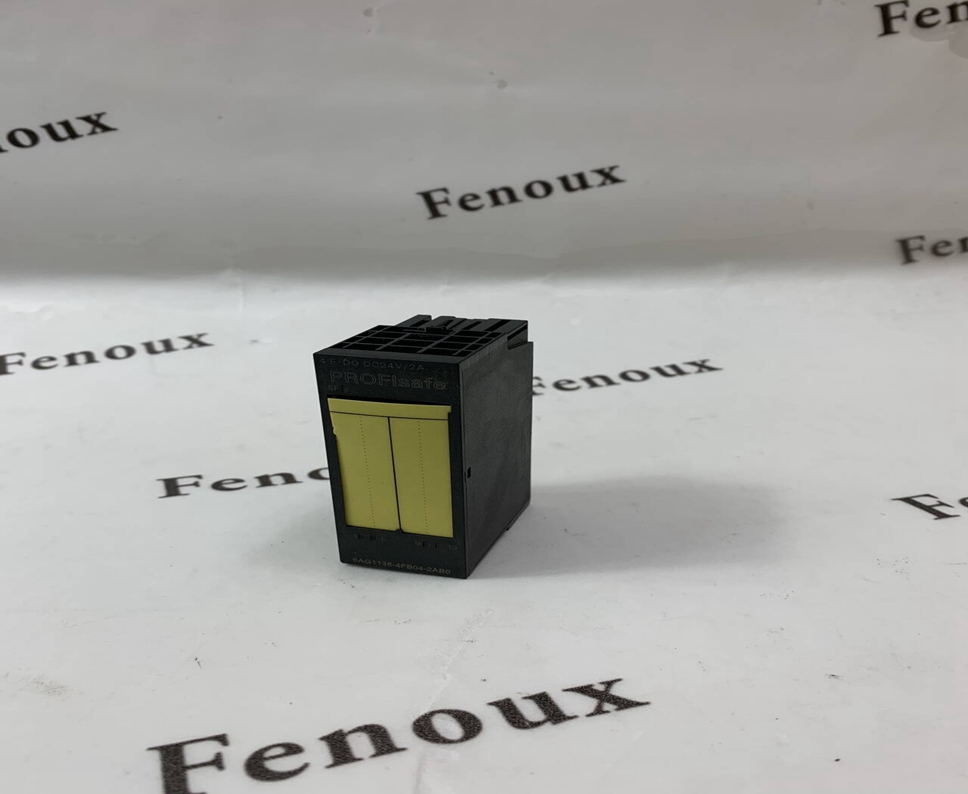

6AG1138-4FA04-2AB0 Siemens

Rated value (DC)

● 24 V DC Yes

permissible range, lower limit (DC) 20.4 V

permissible range, upper limit (DC) 28.8 V

Reverse polarity protection No

Encoder supply

Number of outputs 2

Type of output voltage min. L+ (-1.5 V)

Short-circuit protection Yes; Electronic (response threshold 0.7 A to 1.8 A)

Output current

● Rated value 300 mA

● permissible range, lower limit 0 mA

● max. 300 mA

Power loss

Power loss, typ. 4 W

Occupied address area

● Inputs 6 byte

● Outputs 4 byte

Digital inputs

Number of digital inputs 8; 8 single channel, 4 two-channel

Input characteristic curve in accordance with IEC

61131, type 1

Yes

Number of simultaneously controllable inputs

● Number of simultaneously controllable inputs 8

Input voltage

● Type of input voltage DC

● Rated value (DC) 24 V

● for signal "0" -30 to +5V

● for signal "1" +15 to +30V

Input current

● for signal "1", typ. 3.7 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable Yes

— at "0" to "1", min. 0.3 ms

— at "0" to "1", max. 17 ms

— at "1" to "0", min. 0.3 ms

— at "1" to "0", max. 17 ms

Cable length

● shielded, max. 200 m

● unshielded, max. 200 m

Encoder

Connectable encoders

● 2-wire sensor No

Interrupts/diagnostics/status information

Diagnostic functions Yes

Alarms

● Diagnostic alarm Yes

Diagnostic messages

● Diagnostic information readable Yes

● Short-circuit Yes

Diagnostics indication LED

● Group error SF (red) Yes

● Status indicator digital input (green) Yes
