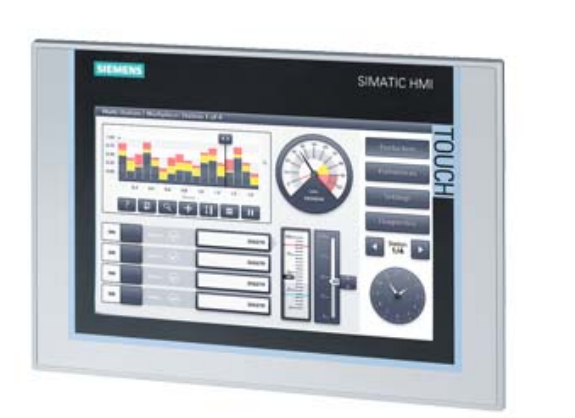

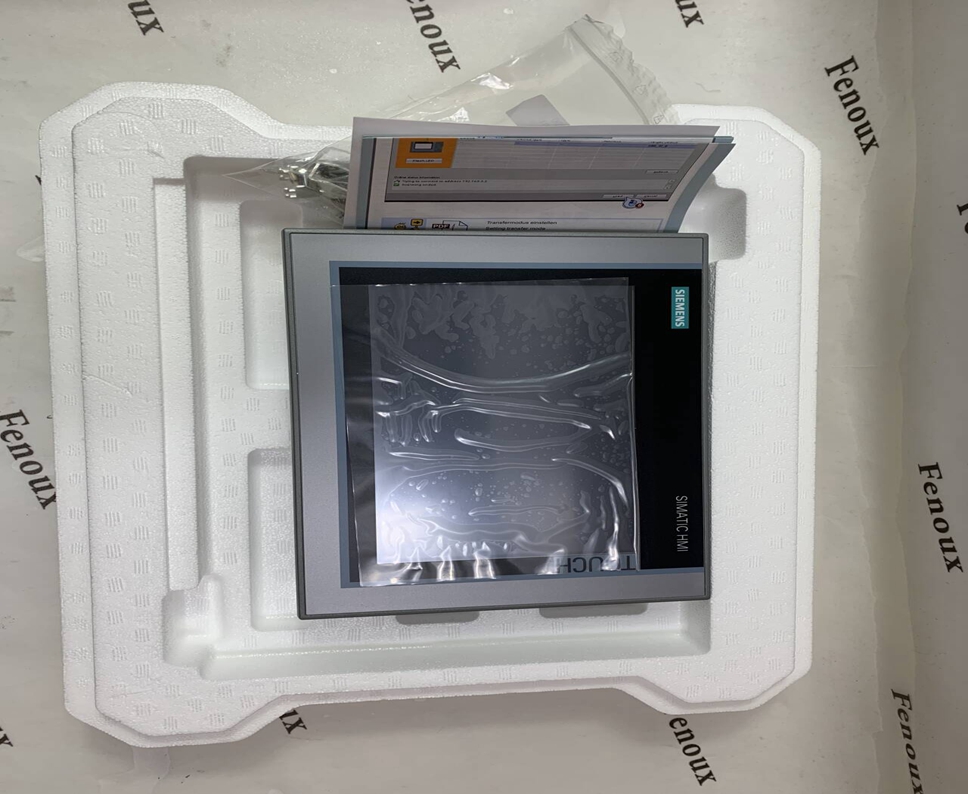

6AV2124-0JC01-0AX0 Siemens

Product type designation TP900 Comfort

Display

Design of display TFT

Screen diagonal 9 in

Display width 195 mm

Display height 117 mm

Number of colors 16 777 216

Resolution (pixels)

● Horizontal image resolution 800 Pixel

● Vertical image resolution 480 Pixel

Backlighting

● MTBF backlighting (at 25 °C) 80 000 h

● Backlight dimmable Yes; 0-100 %

Control elements

Keyboard fonts

● Function keys

— Number of function keys 0

● Keys with LED No

● System keys No

● Numeric keyboard Yes; Onscreen keyboard

● alphanumeric keyboard Yes; Onscreen keyboard

Touch operation

● Design as touch screen Yes

Expansions for operator control of the process

● DP direct LEDs (LEDs as S7 output I/O)

— F1...Fx 0

● Direct keys (keys as S7 input I/O)

— F1...Fx 0

● Direct keys (touch buttons as S7 input I/O) 40

Installation type/mounting

Mounting position vertical

Mounting in portrait format possible Yes

Mounting in landscape format possible Yes

maximum permissible angle of inclination without

external ventilation

35°

Supply voltage

Type of supply voltage DC

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Input current

Current consumption (rated value) 0.75 A

Starting current inrush I²t 0.5 A²·s

Power

Active power input, typ. 18 W

Processor

Processor type X86

Memory

Flash Yes

RAM Yes

Memory available for user data 12 Mbyte

Type of output

Info LED No

Power LED No

Error LED No

Acoustics

● Buzzer No
