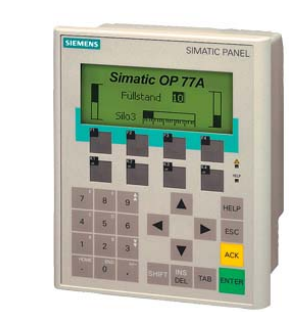

SIMATIC Operator Panel OP 77A LC display backlit, 4.5" display
graphics-capable, MPI-/PROFIBUS-DP interface to 1.5 MB,
configurable from WinCC flexible 2004 Compact HSP contains open
source software, which is provided free of charge. see enclosed CD
Description:
— Number of analog messages 1 000
● Telegram message procedure Alarm S No
● System messages HMI Yes
● System messages PLC Yes
● System messages, other (SIMATIC S7,
Sinumerik, Simotion, etc.)
No
● Number of characters per message 80
● Number of process values per message 8
● Acknowledgment groups Yes
● Message indicator No
● acoustic feedback No
● First/last value Yes
Recipe management
● Number of recipes 5
● Data records per recipe 20
● Entries per data record 20
● Recipe memory 32 KB integrated Flash
Variables
● Number of variables per device 1 000
● Number of variables per screen 30
● Limit values Yes
● Multiplexing Yes
● Structures No
Images
● Number of configurable images 500
● Permanent window/default Yes
● Start screen configurable Yes
● Image selection by PLC Yes
● Image number in the PLC Yes
Image objects
● Text objects 1,000 text elements
● Number of I/O fields per image 30
● Index of screen context No
● Return Yes
● Graphics object Bit maps, icons, icon (full-screen)
— Icons 1
— Icon (full screen) 1
Complex image objects
● Status/control Not possible
● dynamic objects Bar graphs
● Bar graphs
