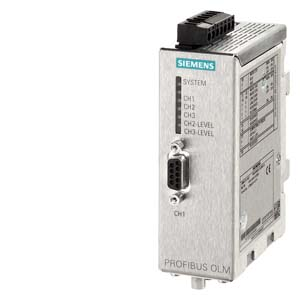

Damping ratio / of the FOC transmission link
● for glass FOC with 50/125 µm / at 3 dB/km /
maximum
10 dB
● for glass FOC with 62.5/125 µm / at 3.5 dB/km /
maximum
12 dB
propagation delay [bit] 6.5 bit
Connectable optical power relative to 1 mW
● for glass FOC with 50/125 µm / at 3 dB/km -16 dB
● for glass FOC with 62.5/125 µm / at 3.5 dB/km -13 dB
Optical sensitivity relating to 1 mW
● for glass FOC with 50/125 µm / at 3 dB/km -28 dB
● for glass FOC with 62.5/125 µm / at 3.5 dB/km -28 dB
Wavelength
● for glass FOC with 50/125 µm / compatible with
interface / at 3 dB/km
860 nm
● for glass FOC with 62.5/125 µm / compatible
with interface / at 3.5 dB/km
860 nm
Wire length
● for glass FOC with 50/125 µm / at 3 dB/km /
maximum
3 km
● for glass FOC with 62.5/125 µm / at 3.5 dB/km /
maximum
3 km
Signal-Inputs/outputs
Operating voltage / of the signaling contacts / at DC /
Rated value
24 V
Operating current / of the signaling contacts / at DC /
maximum
0.1 A
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage DC
Supply voltage / at DC / Rated value 24 V
Supply voltage / at DC 18.8 ... 28.8 V
Product component / fusing at power supply input Yes
Consumed current / at DC / at 24 V / maximum 0.2 A
Permitted ambient conditions
Ambient temperature
● during operation 0 ... 60 °C
● during storage -40 ... +70 °C
● during transport -40 ... +70 °C
Relative humidity / at 25 °C / without condensation /
during operation / maximum
95 %
Protection class IP IP40
