6ES7131-1BH01-0XB0 Siemens

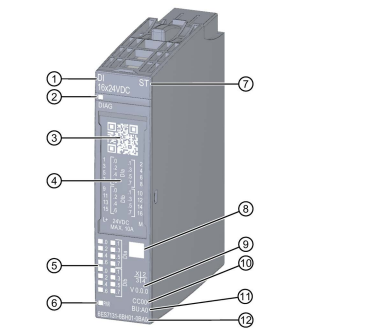

① Module type and name ⑦ Function class

② LED for diagnostics ⑧ Color coding module type

③ 2D matrix code ⑨ Function and firmware version

④ Wiring diagram ⑩ Color code for selecting the color identification

labels

⑤ LEDs for channel status ⑪ BU type

⑥ LED for supply voltage ⑫ Article number

The module has the following technical properties:

● Digital input module with 16 inputs

● Sink input, (PNP, P-reading)

● Supply voltage L+

● Configurable input delay 0.05 to 20 ms (per channel)

● Configurable diagnostics (per module)

● Suitable

The following accessories must be ordered separately:

● Labeling strips

● Color identification labels

● Reference identifica

The following figure shows the block diagram and an example of the terminal assignment of

the digital input module DI 16x24VDC ST on the BaseUnit BU type A0 without AUX terminals

(1-wire connection).
