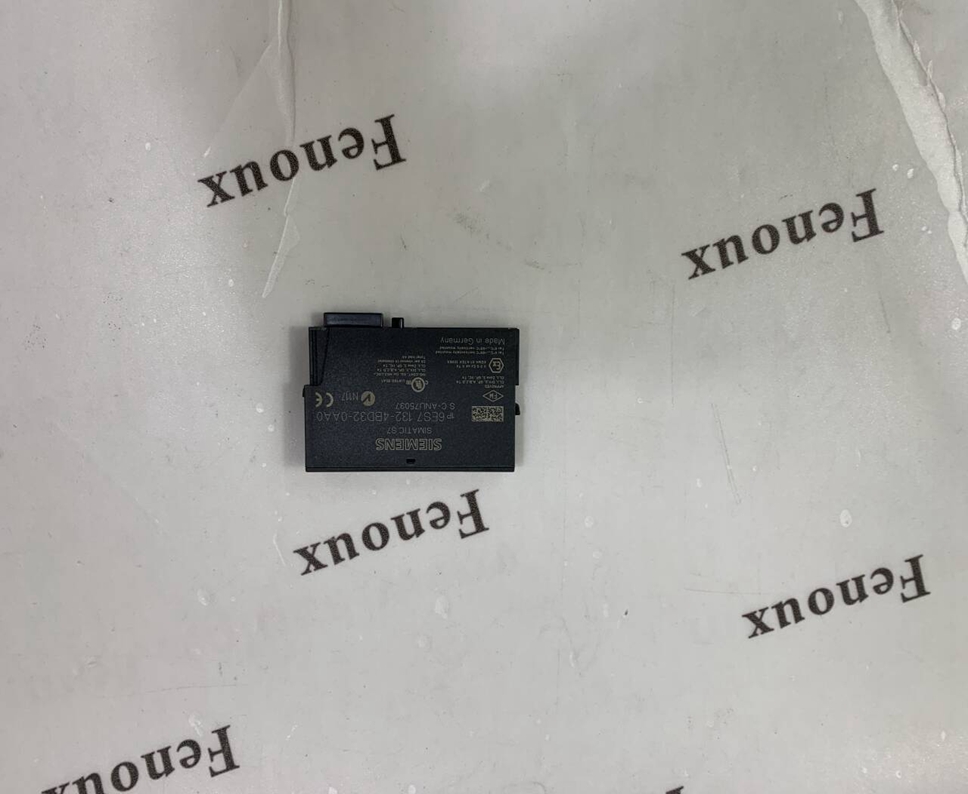

6ES7132-4BD32-0AA0 Siemens

Dimensions and weight

Dimensions W × H × D (mm)

(Total dimensions depend on the terminal module selected)

15 × 81 × 52

Weight Approx. 40 g

Module-specific data

Supports isochronous operation Yes

Number of outputs 4

Cable length

• Unshielded Max. 600 m

• Shielded Max. 1000 m

Parameter length 1 byte

Address space 1 byte

Address space (packed) 4 bits

Voltages, currents, potentials

Rated Rated load voltage L+ (from power module)

24 V DC

• Polarity reversal Yes 1

Total current of the outputs (per module) 4 A

Electrical isolation

• Between the channels No

• Between the channels and backplane bus Yes

Permissible potential difference

• Between different circuits 75 V DC / 60 V AC

Isolation tested 500 V DC

Current consumption

• From the rated load voltage L+ (no load) Max. 10 mA per channel

Power loss of the module Typically 1.6 W

Status, interrupts, diagnostics

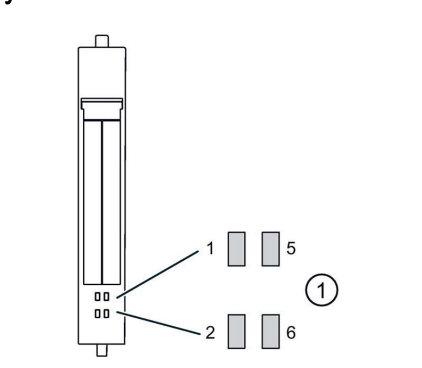

Status display Green LED per channel

Diagnostics functions No

Actuator selection data

Output voltage

• At signal "1" Min. L+ (-1 V)

Output current

• At signal "1"

– Rated value

– Permissible range

2 A

7 mA to 2.4 A

• At "0" signal (residual current) Max. 0.1 mA
