Brand：siemens
Model number：6ES7138-4DA04-0AB0
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.23kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

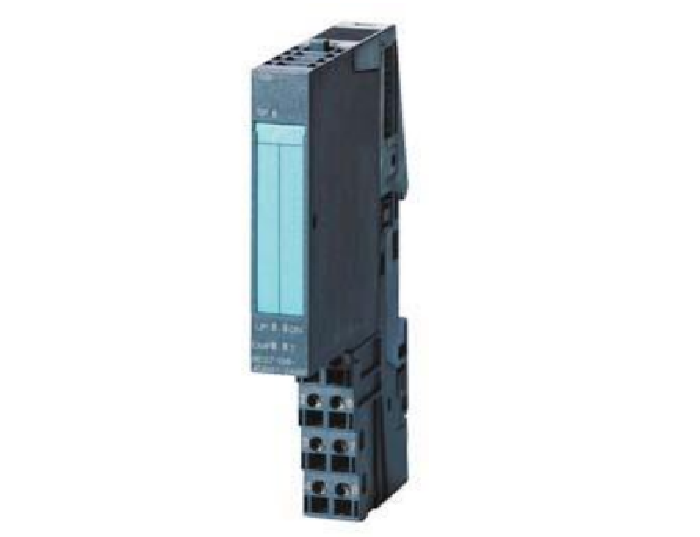

SIMATIC DP, Electronics module for ET 200S, 1 count 24 V/100 kHz
15 mm installation width, operating modes: Count, Measure, (cycle
duration measurement, high-resolution) with clock synchronization
Supply voltage
Load voltage L+
● Rated value (DC) 24 V
● permissible range, lower limit (DC) 20.4 V
● permissible range, upper limit (DC) 28.8 V
● Reverse polarity protection Yes
Input current
from load voltage L+ (without load), max. 42 mA
from backplane bus 3.3 V DC, max. 10 mA
Encoder supply
24 V encoder supply
● 24 V Yes; L+ (-0.8 V)
● Short-circuit protection Yes
● Output current, max. 500 mA
Power loss
Power loss, typ. 1 W
6ES7138-4DA04-0AB0 Subject to change without notice
Page 1/4
12/10/2020 © Copyright Siemens
Hardware configuration
Module exchange
● Module exchange during operation of the IMDP
Yes
●
Module exchange under process voltage Yes
Digital inputs
Number of digital inputs 1
Functions Gate control, synchronization, latch function
Input characteristic curve in accordance with IEC
61131, type 2
Yes
Input voltage
● Rated value (DC) 24 V
● for signal "0" -30 to +5 V
● for signal "1" +11 to +30V
Input current
● for signal "0", max. (permissible quiescent
current)
2 mA
● for signal "1", typ. 9 mA
Input delay (for rated value of input voltage)
for standard inputs
— at "0" to "1", max. 2.5 µs; Filter off: 2.5 µs (200 kHz), filter on: 25 µs (20 kHz)
Cable length
● shielded, max. 100 m; Filter 20 kHz: 100 m, filter 200 kHz: 50 m
Digital outputs
Number of digital outputs 1
Short-circuit protection Yes
● Response threshold, typ. 2.6 A to 4 A
Limitation of inductive shutdown voltage to L+ (-50 to -60 V)
Controlling a digital input Yes
Switching capacity of the outputs
● on lamp load, max. 5 W
Output voltage
● Rated value (DC) 24 V
● for signal "0", max. 3 V
● for signal "1", min. L+ (-1 V)
Output current
● for signal "1" permissible range for 0 to 40 °C,
min.
5 mA
● for signal "1" permissible range for 0 to 40 °C,
max.
2 000 mA
● for signal "1" permissible range for 0 to 60 °C,
min.
5 mA
6ES7138-4DA04-0AB0 Subject to change without notice
Page 2/4
12/10/2020 © Copyright Siemens● for signal "1" permissible range for 0 to 60 °C,
max.
500 mA; 1 000 mA at 50 °C
● for signal "0" residual current, max. 0.5 mA
Output delay with resistive load
● "0" to "1", max. 100 µs
Switching frequency
● with resistive load, max. 100 Hz
● with inductive load, max. 2 Hz
● on lamp load, max. 10 Hz
Cable length
● shielded, max. 1 000 m
● unshielded, max. 600 m
Encoder
Number of connectable encoders, max. 1
Connectable encoders
● Incremental encoder (asymmetrical) Yes
● 24 V initiator Yes
● 2-wire sensor Yes
Interrupts/diagnostics/status information
Diagnostics function Yes
Diagnostics indication LED
● Group error SF (red) Yes
● Status indicator digital input (green) Yes
● Status indicator digital output (green) Yes
● Status indicator forward counting (green) Yes
● Status indicator backward counting (green) Yes
Integrated Functions
Measuring functions
Measuring range
— Frequency measurement, min. 0.1 Hz
— Frequency measurement, max. 100 kHz
— Cycle duration measurement, min. 10 µs
— Cycle duration measurement, max. 120 s
— Speed measurement, min. 1 1/min
— Speed measurement, max. 25 000 1/min
Counter
Number of counter inputs 1; 32 bit
Parameter
Remark 16 byte
