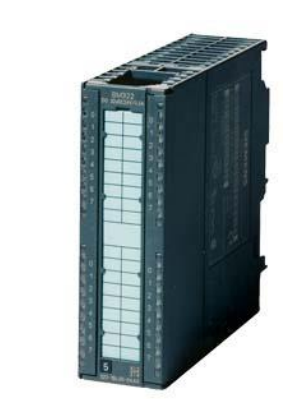

6ES7322-1BH01-0AA0 SIEMENS

SIMATIC S7-300, Digital output SM 322, isolated, 16 DO, 24 V DC,

0.5A, 1x 20-pole, Total current 4 A/group (8 A/module)

Description:

Diagnostics function No

Alarms

● Diagnostic alarm No

Diagnostic messages

● Wire-break No

● Short-circuit No

● Fuse blown No

● missing load voltage No

Diagnostics indication LED

● Rated load voltage PWR (green) No

● Fuse OK FSG (green) No

● Status indicator digital output (green) Yes

Potential separation

Potential separation digital outputs

● between the channels Yes

● between the channels, in groups of 8

● between the channels and backplane bus Yes; Optocoupler

Isolation

Isolation tested with 500 V DC

Connection method

required front connector 20-pin

Dimensions

Width 40 mm

Height 125 mm

Depth 120 mm

Weights

Weight, approx. 190 g

last modified: 07/10/2020
