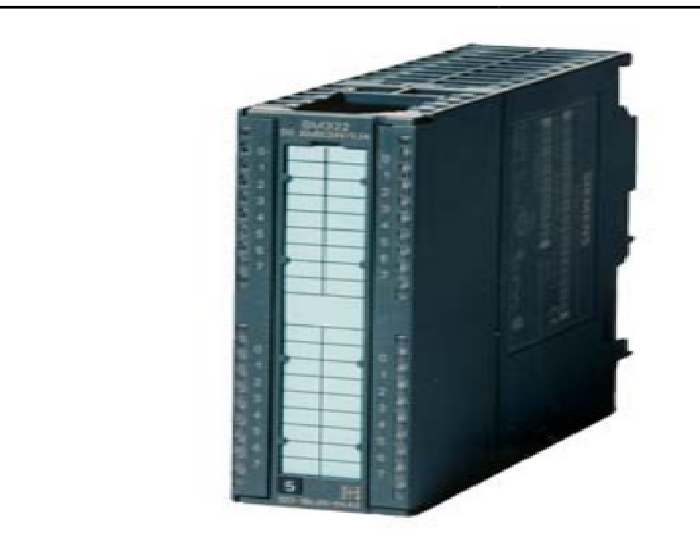

6ES7322-1HF01-0AA0 Siemens central processing unit

INQUIRE NOW

Products Name: 6ES7322-1HF01-0AA0 Siemens central processing unit

PRODUCT DESCRIPTION

Brand：siemens

Model number：6ES7322-1HF01-0AA0

Colour：new

Warranty: 12 months

Lead Time：3-day working day

Country of origin: USA Price: Please contact us

Product weight：0.3kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

Supply voltage Load voltage L+

Rated value (DC) 24 V

Input current

from load voltage L+ (without load), max. 110 mA ; Current consumption of relay from load voltage L1 (without load), max. 110 mA from backplane bus 5 V DC, max. 40 mA

Power losses

Power loss, typ. 3.2 W

Digital outputs

Number/binary outputs 8 ; Relay Lamp load, max. 50 W

Output current

for signal "1" rated value 2 A for signal "1" minimum load current 5 mA

Switching frequency

with resistive load, max. 2 Hz with inductive load, max. 0.5 Hz on lamp load, max. 2 Hz mechanical, max. 10 Hz

Relay outputs

Rated input voltage of relay coil L+ (DC) 24 V ; 110 mA Number of operating cycles, max. 300000 ; 230 V AC: 100000; 120 V AC: 200000; 24 V DC: 300000 (at 2 A)

Switching capacity of contacts

with inductive load, max. 2 A ; 2 A (230 V AC), 2 A (24 V DC) Switching frequency/contacts/at ohmic load/maximum 2 A

Cable length

Cable length, shielded, max. 1000 m Cable length unshielded, max. 600 m

Interrupts/diagnostics/status information Alarms

Diagnostic alarm No

Diagnostic messages

Diagnostics No Wire break No Short circuit No Fuse blown No Missing load voltage No

Diagnostics indication LED

Rated load voltage PWR (green) No Fuse OK FSG (green) No

Galvanic isolation Galvanic isolation digital outputs

between the channels, in groups of 2 between the channels and the backplane bus Yes ; Optocoupler
