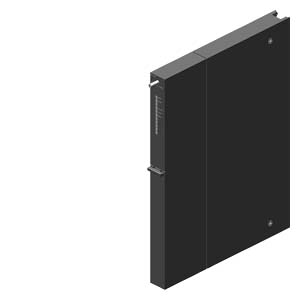

SIMATIC S7-400, coupling module CP 441-2 for point-to-point connections,
2 channels incl. configuration package on CD
Supply voltage
Rated value (DC)
● 5 V DC Yes
● 24 V DC Yes
Input current
from backplane bus 5 V DC, max. 300 mA; Without interface module
Power loss
Power loss, typ. 2.7 W; incl. 2x20mA TTY module
Memory
Memory requirements per interface in memory card of S7-
CPU
1 to 5 KB for parameters; 0 to 55 KB for message texts; 0 to 64 KB for
loadable drivers
Interfaces
Number of interfaces 2; variable
Point-to-point connection
● Transmission rate, max. 115.2 kbit/s; Min. 300 bps
● supported printers HP-Deskjet, HP-Laserjet, IBM-Proprinter, user-defined
Integrated protocol driver
— 3964 (R) Yes
— ASCII Yes
— RK 512 Yes
— Printer Yes
— customer-specific drivers reloadable No
Transmission rate, 20 mA (TTY)
— with 3964 (R) protocol, max. 19.2 kbit/s
— with ASCII protocol, max. 19.2 kbit/s
— with printer driver, max. 19.2 kbit/s
— with RK 512 protocol, max. 19.2 kbit/s
Transmission rate, RS 422/485
— with 3964 (R) protocol, max. 115.2 kbit/s
— with ASCII protocol, max. 115.2 kbit/s
— with printer driver, max. 115.2 kbit/s
— with RK 512 protocol, max. 115.2 kbit/s
Transmission speed, RS 232
— with 3964 (R) protocol, max. 115.2 kbit/s
— with ASCII protocol, max. 115.2 kbit/s
— with printer driver, max. 115.2 kbit/s
— with RK 512 protocol, max. 115.2 kbit/s
