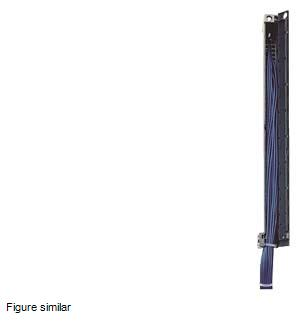

S7-400 FRONT CONN. W. SINGLE CORES 2.5M
Front connector for SIMATIC S7-400 48-pol strip for MS/MSP/MR
units (6ES7492-1AL00-0AA0) with 46 single cores 0.5 mm2, Single
cores H05V-K, Screw version VPE=1 unit L = 2.5 m
Target system SIMATIC S7-400
Suitability for use Digital I/O modules
Product type designation Flexible connection
Product designation Front connector with single cores
Product properties, functions, components / general
Connector type 6ES7492-1AL00-0AA0
Wire length 2.5 m
Design of cable H05V-K
Material / of the connecting cable sheath PVC
Color / of cable sheath blue
RAL color number RAL 5010
Outer diameter / of cable sheath 2.2 mm; bundled single cores
Conductor cross section / Rated value 0.5 mm²
Marking / of cores Number consecutively from 3 to 48 in white adapter contact = core
number
Type of connecting terminal Screw-type terminal
Number of channels 46
Number of poles 48; of the front connector
Operating data
Operating voltage / at DC
● Rated value 24 V
● maximum 30 V
Continuous current / with simultaneous load on all
cores / at DC / maximum permissible
1 A
Ambient temperature
● during storage -30 ... +70 °C
● during operation 0 ... 60 °C
General data
Certificate of suitability / cULus approval No
Suitability for interaction
● Input card PLC Yes
● PLC output card Yes
Suitability for use
● digital signal transmission Yes
● analog signal transmission No
Type of electrical connection
● in the field other
● on enclosure Screw-type terminal
Equipment marking / acc. to DIN EN 81346-2 W
Net weight 1.22 kg
