Brand:SIEMENS
Model number:6ES7960-1AA04-5AA0
Colour:new
Warranty: 12 months
Lead Time:3-day working day
Country of origin: USA Price: Please contact us
Product weight:0.40kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service

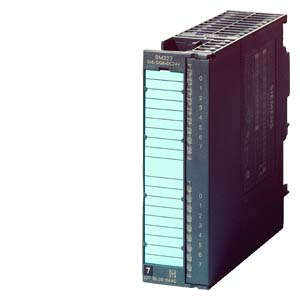

6ES7960-1AA04-5AA0 Siemens I/O module
INQUIRE NOW
Products Name: 6ES7960-1AA04-5AA0 Siemens
PRODUCT DESCRIPTION
SIMATIC S7-300, DIGITAL MODULE SM 323,
OPTICALLY ISOLATED, 8 DI AND 8 DO,
24V DC, 0.5A AGGREGATE CURRENT 2A,
1X20 PIN
Description:
up to 40 °C, max. 8
up to 60 °C, max. 8
Input voltage
Type of input voltage DC
Rated value, DC 24 V
for signal "0" -30 to +5 V
for signal "1" 13 to 30 V
Input current
for signal "1", typ. 7 mA
Input delay (for rated value of input voltage)
for standard inputs
at "0" to "1", min. 1.2 ms
at "0" to "1", max. 4.8 ms
at "1" to "0", min. 1.2 ms
at "1" to "0", max. 4.8 ms
Cable length
Cable length, shielded, max. 1000 m
Cable length unshielded, max. 600 m
Digital outputs
Number/binary outputs 8
Functionality/short-circuit strength Yes ; Electronic
Response threshold, typ. 1 A
Limitation of inductive shutdown voltage to L+ (-53 V)
Lamp load, max. 5 W
Controlling a digital input Yes
Load resistance range
lower limit 48 Ω
upper limit 4 kΩ
Output voltage
for signal "1", min. L+ (-0.8 V)
Output current
for signal "1" rated value 0.5 A
for signal "1" permissible range for 0 to 60 °C, min. 5 mA
