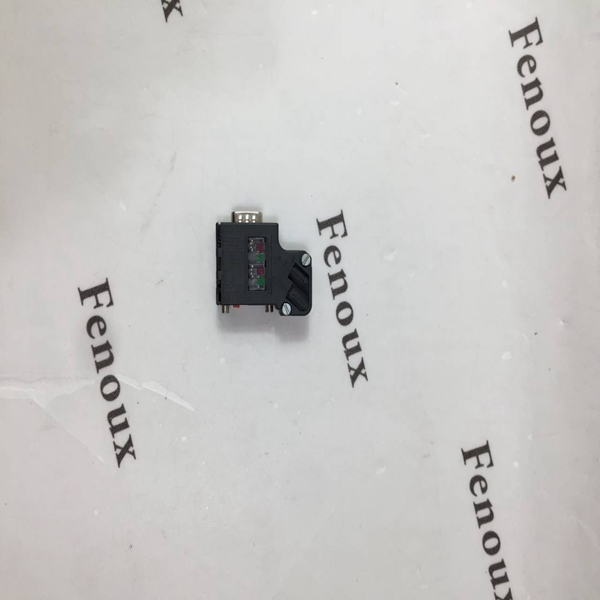

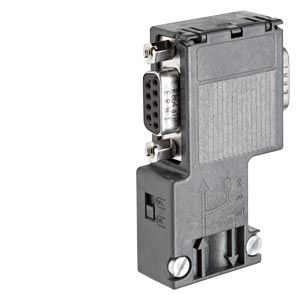

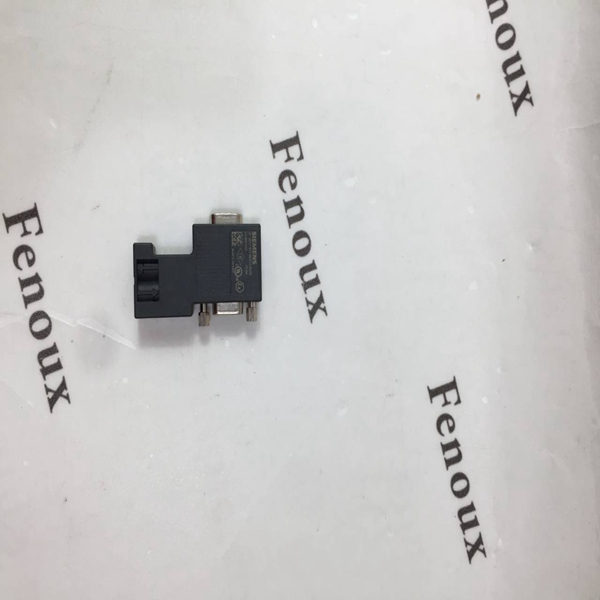

6ES7972-0BB12-0XA0 Siemens

PROFIBUS bus connector, RS 485, screw, with PG socket, 90°

SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90°

cable outlet, 15.8x 64x 35.6 mm (WxHxD), terminating resistor with

isolating function, With PG receptacle

Transfer rate

Transfer rate / with PROFIBUS DP 9.6 kbit/s ... 12 Mbit/s

Interfaces

Number of electrical connections

● for PROFIBUS cables 2

● for network components or terminal equipment 1

Type of electrical connection

● for PROFIBUS cables Screw

● for network components or terminal equipment 9-pin Sub-D connector

Type of electrical connection / FastConnect No

Mechanical data

Design of terminating resistor Integrated resistor combination that can be selected with slide

switch

Material / of the enclosure plastic

Locking mechanism design Screw

Design, dimensions and weights

Type of cable outlet 90 degree cable outlet

Width 15.8 mm

Height 64 mm

Depth 35.6 mm

Net weight 10 g

Ambient conditions

Ambient temperature

● during operation 0 °C

● during storage -40 ... +70 °C

● during transport -40 ... +70 °C

Protection class IP IP20

Product features, product functions, product components / general

Product feature

● silicon-free Yes

Product component

● PG connection socket Yes

● strain relief Yes

Standards, specifications, approvals

Certificate of suitability

● RoHS conformity Yes

● UL approval Yes

Reference code

● acc. to DIN EN 81346-2 XF

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

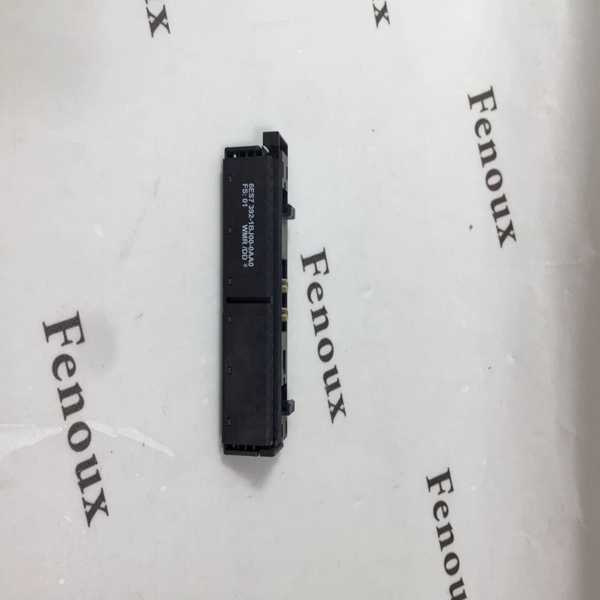

Related products:
