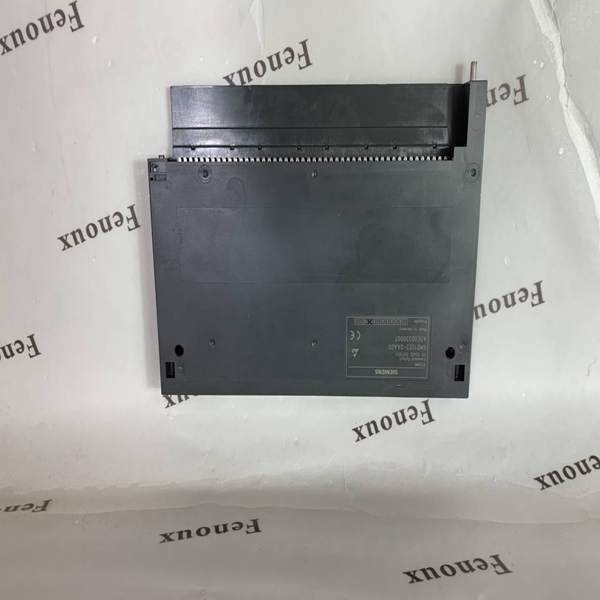

6MD1022-0AA00 Siemens

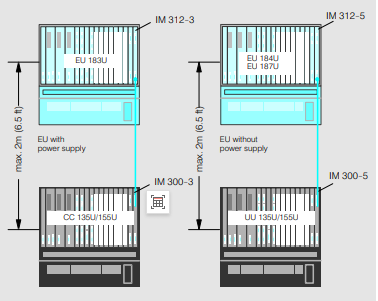

Central configuration

In a central configuration, theexpansion units are either inthe same cabinets as the cen-tral controllers or in a sepa-rate cabinet next to it. Themaximum length for the cableconnecting the central con-troller to the furthest expan-sion unit is 2 m (6.5 ft).

The central controllers andexpansion units consist of acompact housing with

Power supply chassis with 3fans and a lithium backupbattery as well as a storagebattery (for the RAM)21 (or 20 or 11) module slotsThe backup battery is not re-quired in expansion units. Expansion units are also avail-able without the power supplychassis or fans.

HousingThe housing consists ofbolted sheet-steel sectionswith ventilation openings atthe top and bottom. The slotshave socket connectors andquides to accommodate themodules.

A wiring duct for signalcables runs along the front.oeneath the modules andabove the power supply chas-sis

Power supply chassisThe power supply chassiswith 3 fans is located in a tierin the bottom part of the housing.

The input voltage is either24 V DC or 230/120 V ACAn internal switch is providedfor selecting either 230 V or120 V AC.

Output voltages for the inter-nal power supply to the mod.ules!

5 V DC (10 A, 18 A, 40 A:short-circuit protected), withacks for measuring current.24 V DC (0.4 A. 0.5 A. 1 A2 A: fused), with jacksfor measuring voltage15 V DC

Monitoring facilities (with LEDindicators) are provided for:Input voltage (no indication)5 V output voltage.15 V 24 V output voltage3.4 V backup battery voltageAirflow for the fans24 V load voltage (external)

All screw terminals on thepower supply chassis are intended for conductors of upto 4 mm' cross-section.Backup batteryA lithium backup battery withstorage battery as reserve isprovided to supply power toall RAMs in the event of apower failure.

wo jacks are provided for ex-ternal input of the backup

voltage. This allows thebackup battery to be re-placed without interruptingthe backup voltage, evenwhen the input voltage isswitches of The svsr supply chassis can be replacedwithout interrupting thebackup supply.
