7KG6000-8AB/MM Siemens

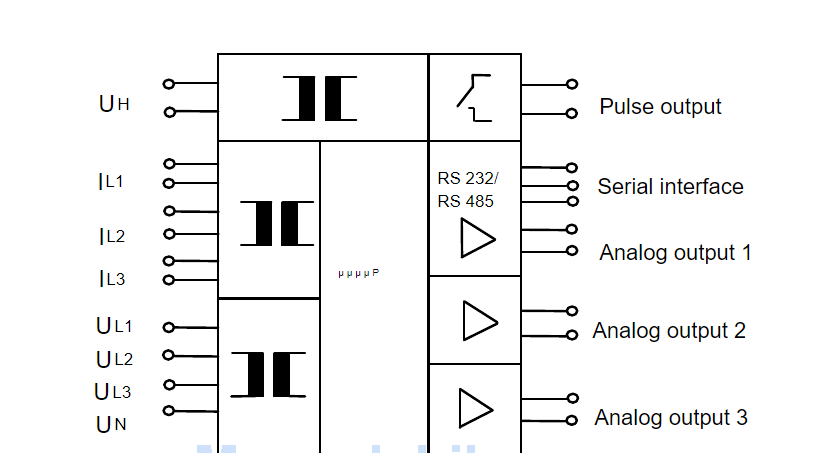

The universal transducer is designed for acquisition of all theimportant measuring signals in any kind of power system. It isused, e.g., in the field of power supply where measuring signalsare transferred over long distances and made available to severalapplications.Each one of the analog outputs can be assigned any measuringsignal (current, voltage, active/reactive/apparent power, ...), aswell as any measuring range. Every output can be connected toseveral devices, e.g. recorders, indicators, controllers, telecontrolunits, or process computers.An impulse output can be used as a limit monitoring indicator orfor power measurement.Inputs and outputs, as well as the auxiliary power supply areelectrically isolated.0 to 20 mA, ±20 mA, 4 to 20 mA, ±10 V, and 0 to 10 V can beselected as output signals.

The measuring signals, voltages and currents, are converted intodigital signals. From the values recorded, a microprocessorcalculates up to 15 derived values. The effective scan rate is 96times the frequency of the measuring signal. This guaranteescorrect results not only for sinusoid curves but also for distortedwaveforms.The rms-values are the squared mean values of the samplingvalues over three periods each.The active power is the mean value obtained from themultiplication of the current and voltage values. To determine thereactive power, a frequency-independent phase angle of 90°between voltage and current is provided internally.
