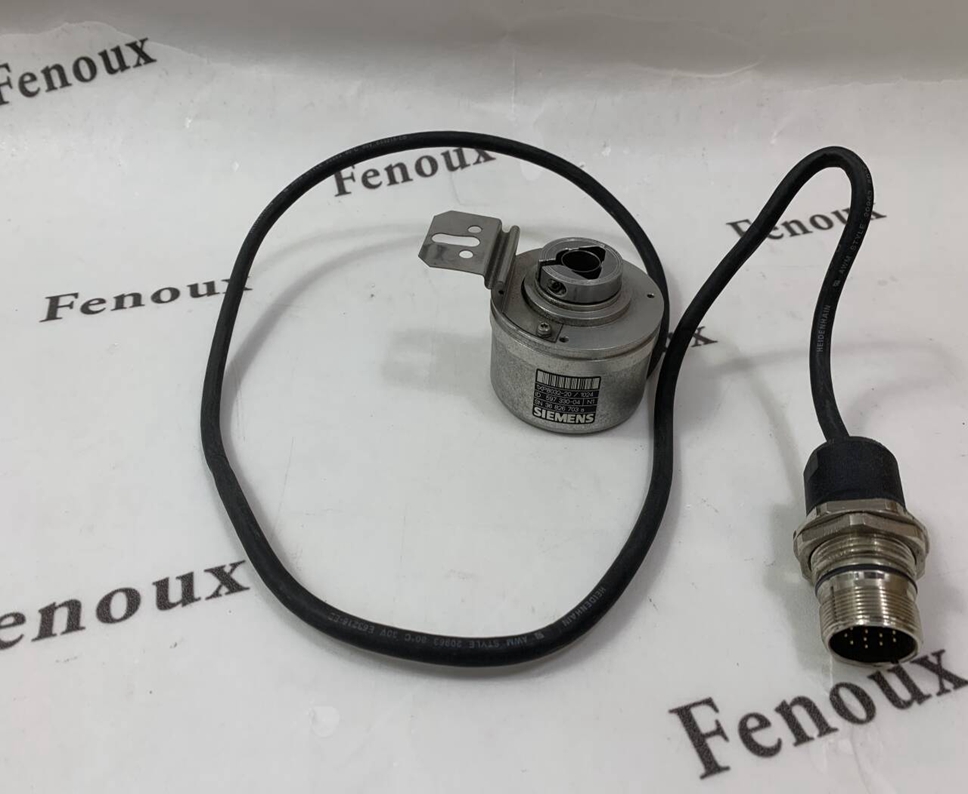

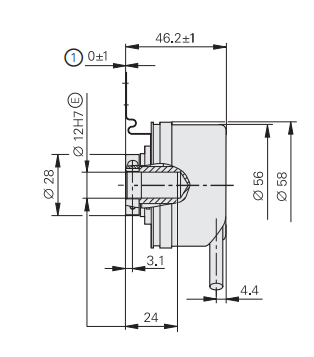

Siemens 1XP8032-20

Interface « TTL « HTL

Line count 1024

Reference mark One

Output frequency

Edge separation a

 300 kHz

 0.39 µs

System accuracy 1/20 of grating period

Electrical connection 12-pin flange socket (male)

Supply voltage DC 5 V ±0.5 V DC 10 V to 30 V (with reverse-polarity protection)

Current consumption

without load

 120 mA  150 mA

Shaft Solid shaft with M8 external thread, 60° centering taper

Mech. permiss. shaft speed n1)  6000 rpm

Starting torque (typical) 0.025 Nm (at 20 °C)

Moment of inertia of rotor  2.7 · 10–6 kgm2

Permiss. axial motion

of measured shaft

±1 mm

Vibration 55 Hz to 2000 Hz

Shock 6 ms

 100 m/s2

 (EN 60068-2-6); higher values upon request

 1000 m/s2

 (EN 60068-2-27)

Operating temperature –40 °C to 100 °C

Protection EN 60529 IP66

Mass  0.3 kg

ID number 538724-71 538725-02
